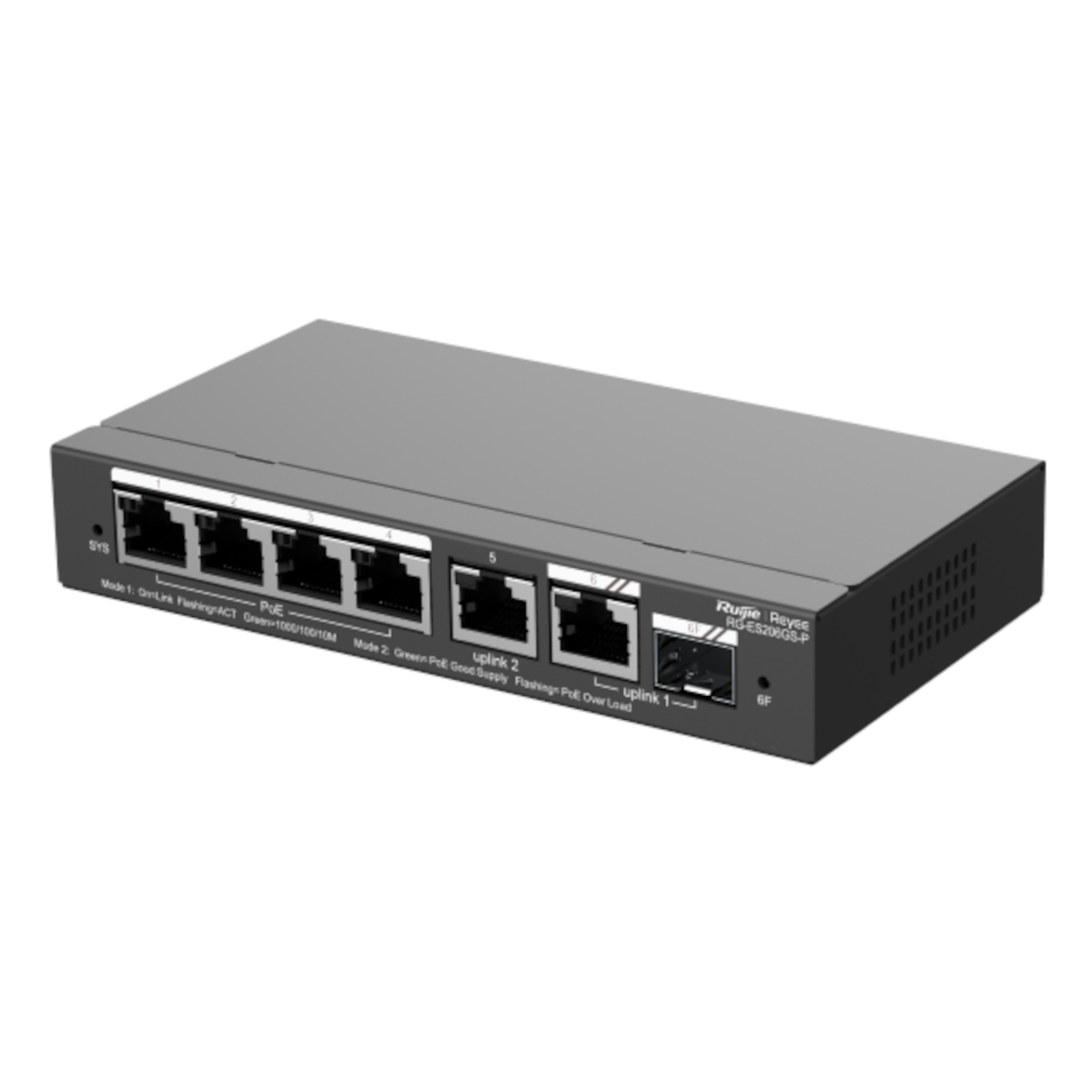

Switch Reyee RG-ES206GS-P (6x Giga / 1x Gigabit Combo / 4x PoE+ 54W ) gestionable en la nube.
SWITCH GEST. REYEE ES206GS-P 6x 10/100/1000 1x COMBO GIGABIT 4x PoE+ 54W CLOUD
Sin existenciasDescripción
| Product Category | |
|---|---|
| Product Category | Layer 2 |
| Port Specifications | |
| Total number of RJ45 ports | 6 |
| Total number of optical ports | 1 |
| Number of 1GE combo ports | 1 |
| Number of 1GE SFP ports | 1 |
| Number of 10/100/1000BASE-T ports | 6 |
| System Specifications | |
| Flash memory | 4 MB |
| Forwarding rate | 8.9 Mpps |
| Switching capacity | 12 Gbps(bit/s) |
| Power Supply and Consumption | |
| Number of PoE Out ports | 4 |
| Number of PoE/PoE+ Out ports | 4 |
| PoE budget | 54 W |
| PoE Out standard | PoE/PoE+ (IEEE 802.3af/at) |
| Dimensions and Weight | |
| Product dimensions (W x D x H) | 148 mm x 78 mm x 26 mm |
| Weigh | 1.07 kg |
| Certification and Regulatory Compliance | |
| EMC | EN 55032 EN61000-3-2 EN 61000-3-3 EN 55035 EN 300 386 |
| Safety compliance & Certification | EN 62638-1, CE, FCC |
| Authentication | |
| Radius | No |
| 802.1X | No |
| Ethernet Switching | |
| Maximum number of VLANs | 16 |
| Maximum number of MAC address entries | 2000 |
| Interface flow control | Yes |
| IEEE 802.1Q VLAN | Yes |
| VLAN configuration supported on LAN ports | Yes |
| LLDP | No |
| LLDP-MED | No |
| Static MAC address | Yes |
| Static aggregation | No |
| LACP | No |
| Inbound or outbound rate limiting based on interface traffic | Yes |
| Gateway Features | |
| 802.1p priority-based traffic classification | No |
| DSCP priority-based traffic classification | No |
| Interface | |
| Jumbo frame length (MTU) | 9216 bytes |
| EEE | Yes |
| Cable test | Yes |
| IP Routing | |
| IPv4 static route | No |
| IPv6 static route | No |
| OSPFv2 | No |
| OSPFv3 | No |
| IP Service | |
| ARP | No |
| UPV4 ping | No |
| IPv4 traceroute | No |
| ICMPv6 | No |
| IPv6 ping | No |
| IPv6 traceroute | No |
| DNS client | Yes |
| DHCP client | Yes |
| Multicast | |
| IGMPv1 snooping | No |
| IGMPv2 snooping | No |
| Basic IGMPv3 snooping | No |
| Full IGMPv3 snooping | No |
| IGMP filtering | No |
| IGMPv1, v2, and v3 | No |
| Software Specifications | |
| Mirroring | Yes |
| HTTP login | Yes |
| HTTPS login | No |
| SON | Yes |
| Syslog | No |
| Camera detection | Yes |
| eWeb management | Yes |
| Ruijie Cloud management | Yes |
| Ruijie Reyee App management | Yes |
| SNMPv1, v2c, and v3 | No |
| Security | |
| Port isolation | Yes |
| Broadcast storm control | Yes |
| Multicast storm control | Yes |
| Unknown unicast storm control | Yes |
| DHCP snooping | Yes |
| Standard ACL | No |
| Extended MAC ACL | No |
| Extended IP ACL | No |
| IPv6 ACL | No |
| ARP anti-spoofing | No |
| CPU Protection Policy | Yes |
| System Performance Capacity | |
| Recommended camera limit | 200W H265: 40 400W H265: 20 |
Información adicional
| Características Switches | 10/100/1000, 8P., No gestionable, PoE |
|---|
