SWITCH GEST. DLINK DGS-1100-08Pv2 10/100/1000 8P POE
SWITCH GEST. DLINK DGS-1100-08Pv2 10-100-1000 8P POE_2-1200

SWITCH GEST. DLINK DGS-1100-08Pv2 10/100/1000 8P POE

Descuento de 7%

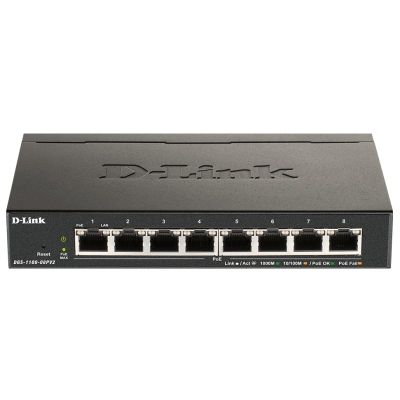

Switch Dlink Gigabit Smart Managed con 8 puertos POE DGS-1100-08Pv2

SKU: RED-DGS-1100-08PV2 Categoría:

Descripción

General
Tipo de dispositivo Conmutador – 8 puertos – Gestionado – Sobremesa
Factor de forma Sobremesa
Puertos 8x 10/100/1000 Mbps (PoE)
Rendimiento
Capacidad de conmutación 16 Gbps
Capacidad maxima de transmision 11.9 Mbps
Tamaño de la tabla de direcciones MAC 4K
buffer 11.5 Mbps
Memoria flash 2 Mbyte
PoE
Estandar PoE IEEE 802.3af/802.3at
Puertos PoE 1 al 8 (max. 30W por puerto PoE)
Rendimiento alimentacion PoE 64W
Parametros fisicos
Dispositivo de alimentación Fuente de alimentación externa
Voltaje 100 to 240 V AC, 50 to 60 Hz
Ventilacion Fanless
Tamaño 171 x 97.8 x 28.6 mm
Cumplimiento de normas
EMI: FCC Class B, CE Class B, VCCI Class B, BSMI
Safety: cUL, CE LVD, CB, BSMI
Caracteristicas
VLAN • Port-based VLAN
• 802.1Q tagged VLAN
• Surveillance VLAN
• Voice VLAN
• Management VLAN
• VLAN Group
• Supports 32 static VLAN groups
• Max. 4094 VIDs
• Asymmetric VLAN
Caracteristicas L2 • Flow Control
• 802.3x Flow Control
• HOL Blocking Prevention
• Jumbo frames up to 9216 bytes
• IGMP Snooping
• IGMP v1/v2 Snooping
• Supports 128 Groups
• Static Trunk
• DGS-1100-05V2/05PDV2: 1 group
• DGS-1100-08V2/08PV2: 2 groups
• Loopback Detection
• Cable diagnostics
• Port mirroring
• One-to-One
• Many-to-One
• Statistics
• Tx Ok
• Tx Error
• Rx Ok
• Rx Error
Quality of Service (QoS) • 802.1p Quality of Service
• 4 queues per port
• Queue handling
• Strict
• Weighted Round Robin (WRR)
• Bandwidth control
• Port-based (Ingress/Egress, min. granularity 8 Kb/s)
• DSCP
Seguridad • Static MAC addresses
• Up to 32 entries
• Traffic segmentation
• Broadcast/Multicast/Unknown Unicast Storm Control
• Port security
Gestion
• Web-based GUI (Supports IPv4)
• D-Link Network Assistant (DNA)
D-Link Green
• Compliant with RoHS 10
• Compliant with IEEE 802.3az Energy Efficient Ethernet (EEE)
Listado RFC • RFC768 UDP
• RFC791 IP
• RFC792 ICMP
• RFC793 TCP
• RFC826 ARP
• IEEE 802.1p
• RFC2236, IGMP Snooping
• RFC1213 MIBII
• RFC1215 MIB Traps Convention
