PUNTO DE ACCESO REYEE RG-RAP62-WALL
PUNTO DE ACCESO REYEE RG-RAP62-WALL
PUNTO DE ACCESO REYEE RG-RAP62-WALL

PUNTO ACCESO PARED REYEE RAP62-WALL WIFI6 AX3000

Punto de acceso para pared Reyee RG-RAP62-WALL WIFI6 AX3000.

SKU: RED-RG-RAP62-WALL Categoría:

Descripción

Product Category
Product Category Punto Acceso para Pared
Port Specifications

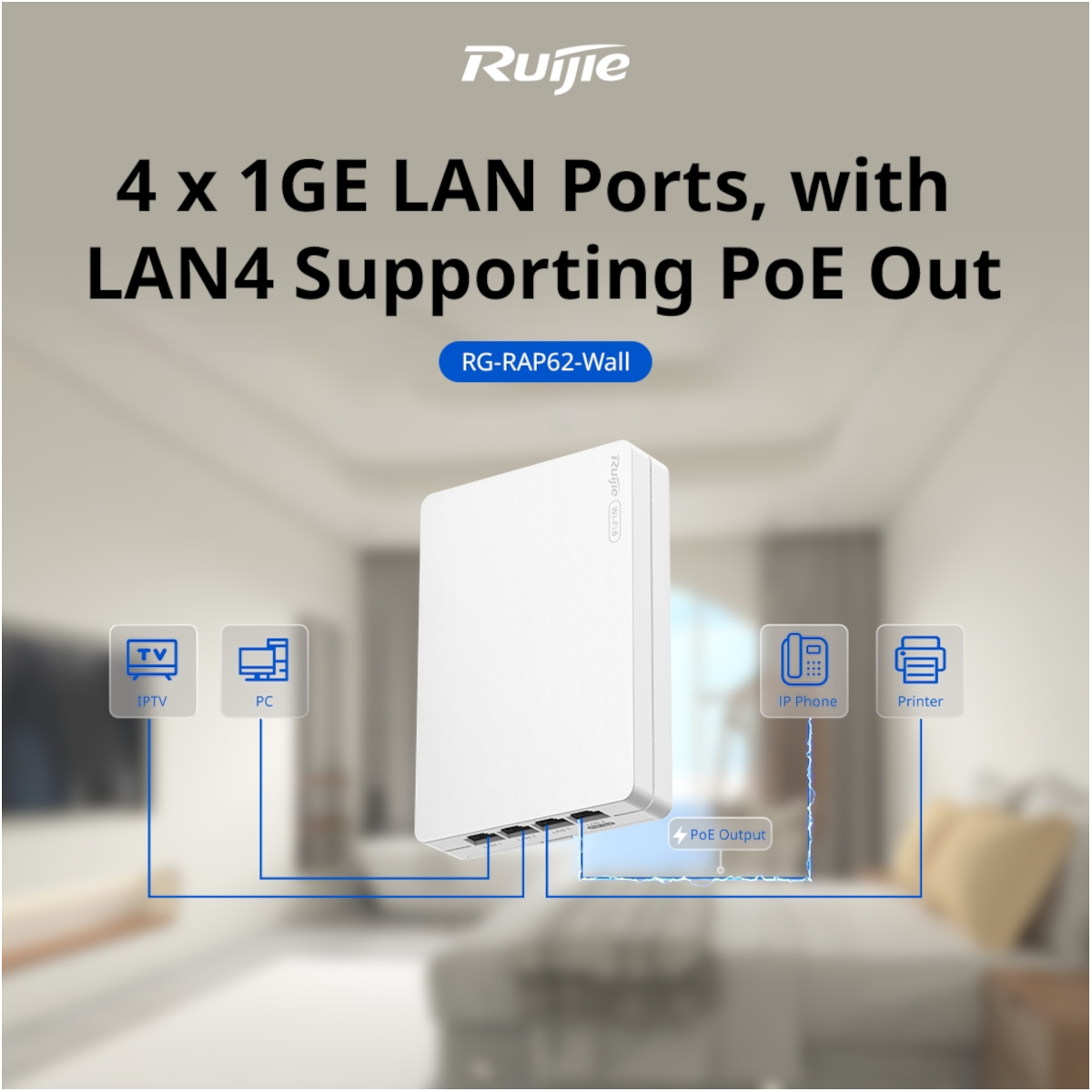

Total number of RJ45 ports 5
Total number of optical ports 0
Number of 1GE combo ports 0
Number of 1GE SFP ports 0
Number of 10/100/1000BASE-T ports 5
System Specifications
Flash memory 128 Mb
RAM 512 Mb
Forwarding rate No
Switching capacity No
Power Supply and Consumption
Number of PoE Out ports 1
Number of PoE/PoE+ Out ports 1
Power Supply PoE / PoE+
PoE In standard IEEE 802.3af (PoE)
Note: The standard does not support PoE Out.
IEEE 802.3at (PoE+)
Passive PoE power supply Si, inyector PoE pasivo 24V
PoE budget 10W (when power source is IEEE 802.3at-compliant)
Maximum power consumption 12W (excluding PoE output)
Dimensions and Weight
Product dimensions (W x D x H) 125 mm x 86 mm x 23,5 mm
Weigh 0.330 kg
Certification and Regulatory Compliance
EMC EN 55032EN
55035EN
61000-3-3EN
61000-3-2EN
301489-1EN
301489-3EN
301489-17
RF EN 300 328
EN 301 893
EN 300 440
Safety compliance & Certification RoHS, CE, CB, EN 62368-1IEC 62368-1
Wi-Fi Radio
Radio Design Dual-radio
4 spatial streams
2.4 GHz: 2 x 2, MU-MIMO
5 GHz: 2 x 2, MU-MIMO
6 GHz Wi No
5 GHz Band Wi-Fi 4 (IEEE 802.11a/n)
Wi-Fi 5 (IEEE 802.11ac)
Wi-Fi 6 (IEEE 802.11ax)
2.4 GHz Wi-Fi Wi-Fi 4 (IEEE 802.11b/g/n)
Wi-Fi 6 (IEEE 802.11ax)
Operating band IEEE 802.11b/g/n/ax, 2.400 GHz to 2.4835 GHz
IEEE 802.11a/n/ac/ax, 5.150 GHz to 5.350 GHz, 5.470 GHz to
5.725 GHz, 5.725 GHz to 5.850 GHz
Note: Available bands vary with countries and regions. To use the
preceding frequency bands, ensure that your country or
region supports these frequency bands.
FEM iFEM
6 GHz channel width No
5 GHz channel width Auto/20/40/80/160 MHz
2.4 GHz channel width Auto/20/40 MHz
Maximum wireless data rate 2974 Mbps
Modulation OFDM: BPSK @ 6/9 Mbps, QPSK @ 12/18 Mbps, 16-QAM @ 24 Mbps, 64-QAM @ 48/54 Mbps
DSSS: DBPSK @ 1 Mbps, DQPSK @ 2 Mbps, and CCK @ 5.5/11 Mbps
MIMO-OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM and 1024-QAM OFDMA
Wireless Data Rate 6 GHz: no
5 GHz: 2401 Mbps
4 GHz: 573 Mbps
Coverage range Máximo 55 m2
Note: The data is obtained in an ideal environment without
obstruction. The signal coverage radius depends on client
performance and environmental interference.
Maximum transmit power 6 GHz: No
5 GHz: Combined power: 21 dBm (single-stream power: 18 dBm)
2,4 GHz: Combined power: 21 dBm (single-stream power: 18 dBm)
Note: The transmit power varies according to regulations in different countries and regions.
Antenna
Antenna 5 GHz: 1 built-in omnidirectional antenna
Integrated 2.4 GHz and 5 GHz: 2 built-in omnidirectional antennas
Antenna horizontal / vertical orientation No / No
Antenna gain 6 GHz: No
5 GHz: 5.40 dBi
2,4 GHz: 4.08 dBi
Reliability

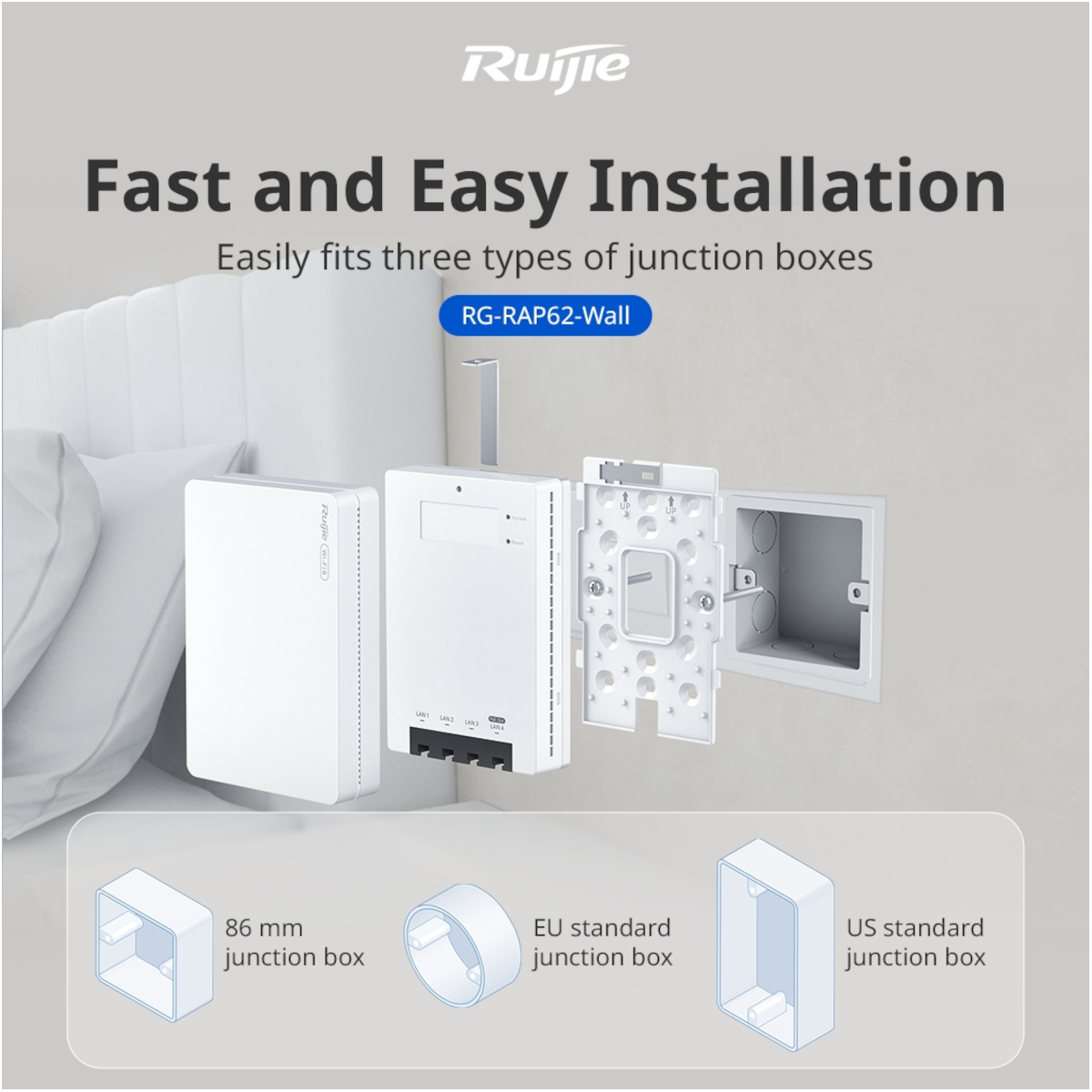

Mounting Options Caja de conexiones
IP rating No
Surge Protection Ethernet port: ±2 kV for common mode
Basic Configurations
AP mode Si
Routing mode Si
Internet access mode Static IP address
Static IPv6 address
Dynamic IP address
Dynamic IPv6 address
PPPoE
Interface
IPTV transparent transmission Si
Ethernet Interface
PPPoE clients Si
Ethernet Switching
IEEE 802.1Q VLAN Si
WLAN
Maximum number of associated wireless clients 2,4 GHz: 64
5 GHz: 256
2,4 GHz and 5 GHz: 256
Recommended number of associated wireless clients Support for IEEE 802.11ax and 160 MHz:16 (2.4 GHz)94 (5 GHz)110 (2.4 GHz and 5 GHz enabled)
Support for IEEE 802.11ax and 80 MHz:16 (2.4 GHz)64 (5 GHz)80 (2.4 GHz and 5 GHz enabled)
Support for IEEE 802.11ac:8 (2.4 GHz)32 (5 GHz)40 (2.4 GHz and 5 GHz enabled)
Maximum number of SSIDs 8
Radio-based client limiting Si
Layer 2 isolation Si
OFDMA / WMM / DFS Si / Si / Si
MLO / 4K-QAM No / No
Different SSIDs for the same VLAN Si
Enabling/Disabling MLO No
AP load balancing Si
Beamforming Si
802.11k/v roaming Si
Roaming Layer 2 / Layer 3 / AI Si / Si / Si
PSK authentication Si
Static allowlist Si
Adjusting the transmit power for beacon and probe frames Si
Encryption mode (WPA-PSK, WPA2-PSK, WPA/WPA2-PSK) Si
OWE (Enhanced Open)WPA3-SAEWPA2-PSK/WPA3-SAE Si
Number of blocklists and allowlists based on MAC addresses (single SSID) 256
Number of global blocklists/allowlists 256
Mesh management Si
AP Mesh Si
AP portal authentication Si
Maximum number of devices that can be managed 300
One-Click Network Optimization Si
Static blocklist Si
IP Service
ARP binding Si
IPv4 / IPv6 ping Si / Si
Traceroute Si
Static/Dynamic NAT Si
DHCP server Si
Authentication
802.1X authentication Si
Network Management and Monitoring
Wireless repeater mode Si
Web login information Single-device login address: 10.44.77.254
Network-wide login address: 10.44.77.253
Default password: admin
Network-wide configuration and management Si
Ruijie Reyee App management Si
eWeb management Si
Ruijie Cloud management Si
SNMP Si
Configuration synchronization among the app, eWeb, and Ruijie Cloud Si
Displaying device information on Ruijie Cloud Si
Package Contents
Package Contents 1 x AP
1 x Mounting bracket
2 x Machine screws (M4 x 40 mm)
2 x Machine screws (M3.5 x 30 mm)
2 x Tapping screws (ST3 x 30 mm)
1 x User Manual
1 x Warranty Card
1 x Key to security lock
Power adapter not included

Información adicional

Características Switches

10/100/1000, 8P., No gestionable, PoE
