PLACA 1200 MICRO-ATX ASUS H510M-K 2xDDR4 / VGA / HDMI / USB3.2
PLACA 1200 MICRO-ATX ASUS H510M-K 2xDDR4 / VGA / HDMI / USB3.2 - Imagen 2
PLACA 1200 MICRO-ATX ASUS H510M-K 2xDDR4 / VGA / HDMI / USB3.2 - Imagen 3

PLACA 1200 MICRO-ATX ASUS H510M-K 2xDDR4 / VGA / HDMI / USB3.2

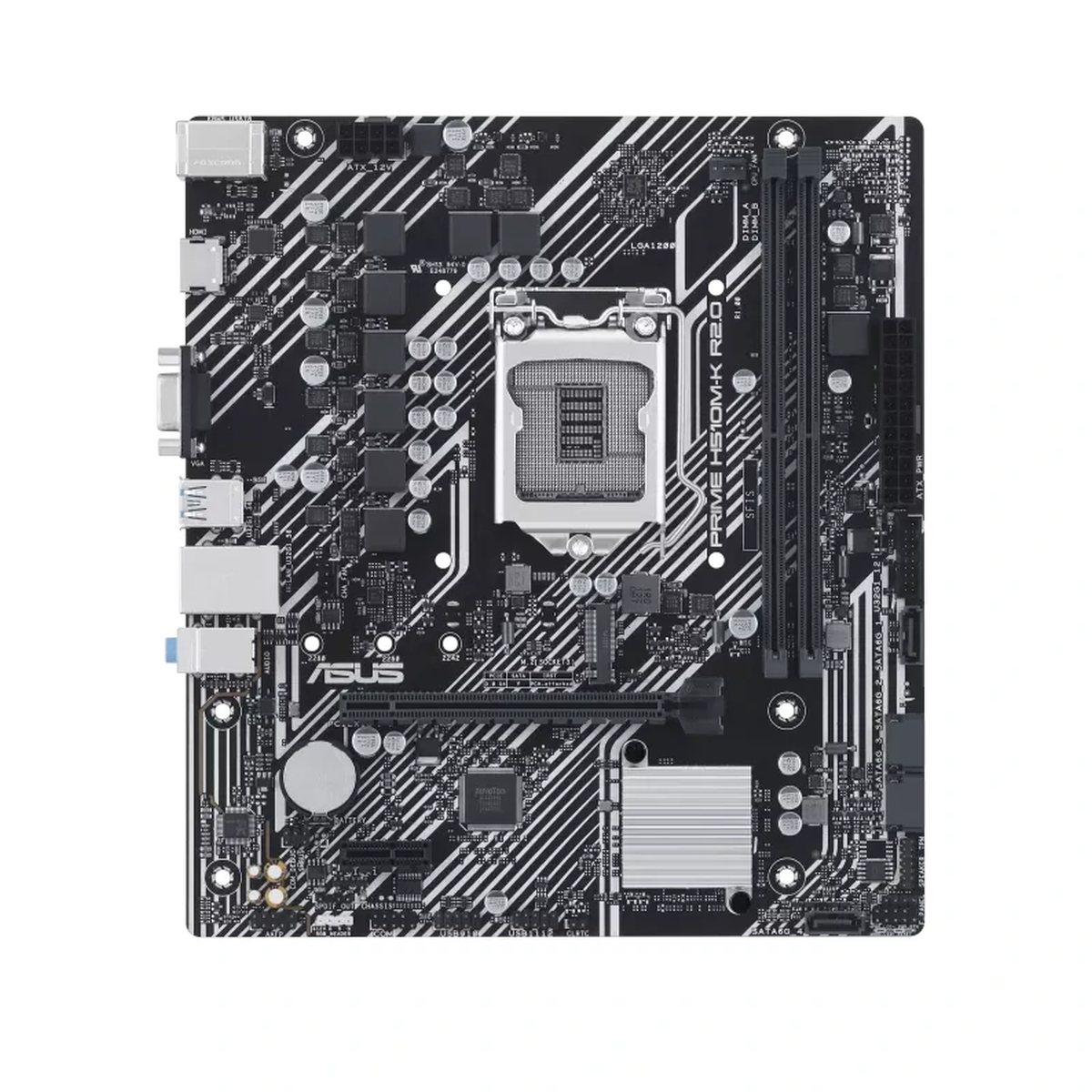

PLACA ASUS PRIME H510M-K / MICRO ATX / SOCKET 1200 / 2xDDR4 / VGA / HDMI / USB3.2 Gen1. Para procesadores GENERACION 10 y 11.

SKU: ASUS-H510M-K Categoría:

Descripción

Factor de Forma Micro ATX
Chipset Intel H510
CPU Soportados Intel Socket 1200 para 11ª Generación de procesadores Core Y 10ª Generacion Core, Pentium y Celeron (14nm)
Memoria
2 x DIMM, Max. 64GB, DDR4 3200 (OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered
Arquitectura de memoria Dual Channel
Compatible con Intel Extreme Memory Profile (XMP)
Slots Expansion
1 x PCIe 4.0 x16 Gen11 / 3.0 x16 Gen10
2 x PCIe 3.0 x1
Graficos
1 x D-Sub
1 x HDMI 2.0
Conectores Internos E/S

1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
1 x RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
1 x 24-pin EATX Power
1 x 8-pin EATX 12V Power

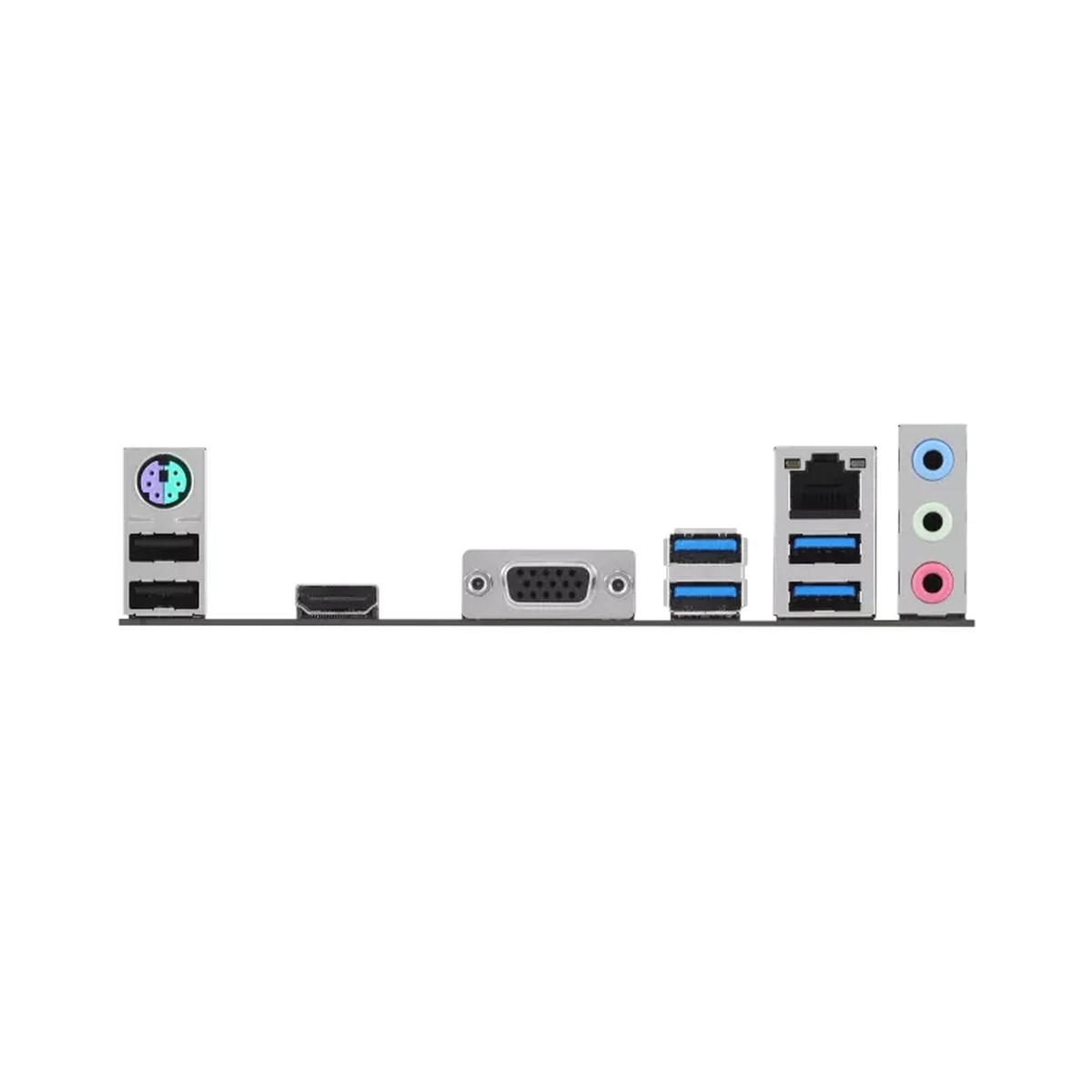

Panel E/S Trasero 2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x D-Sub port
1 x HDMI port
1 x Ethernet port
3 x Audio jacks
1 x PS/2 Teclado
1 x PS/2 Ratón
Audio
Realtek ALC897/887
7.1 Channel High Definition Audio
LAN
Realtek Intel I1219-V
1 x Gigabit LAN
Almacenamiento
1 x M.2 M Key, type 2242/2260/2280 (SATA & PCIE 3.0 x4 modes)*
4 x SATA 6Gb/s
USB
Traseros: 2 x USB 3.2 Gen 1 Tipo-A / 4 x USB 2.0
Delanteros: 1 x USB 3.2 Gen 1 / 2 x USB 2.0

*When a device in SATA mode is installed on the M.2 socket, SATA6G_2 port cannot be used.

Información adicional

*Formato Placa

Mini-ATX
*Tipo de Memoria

DIMM DDR4
*Zócalo

Intel 1200-10, Intel 1200-11
