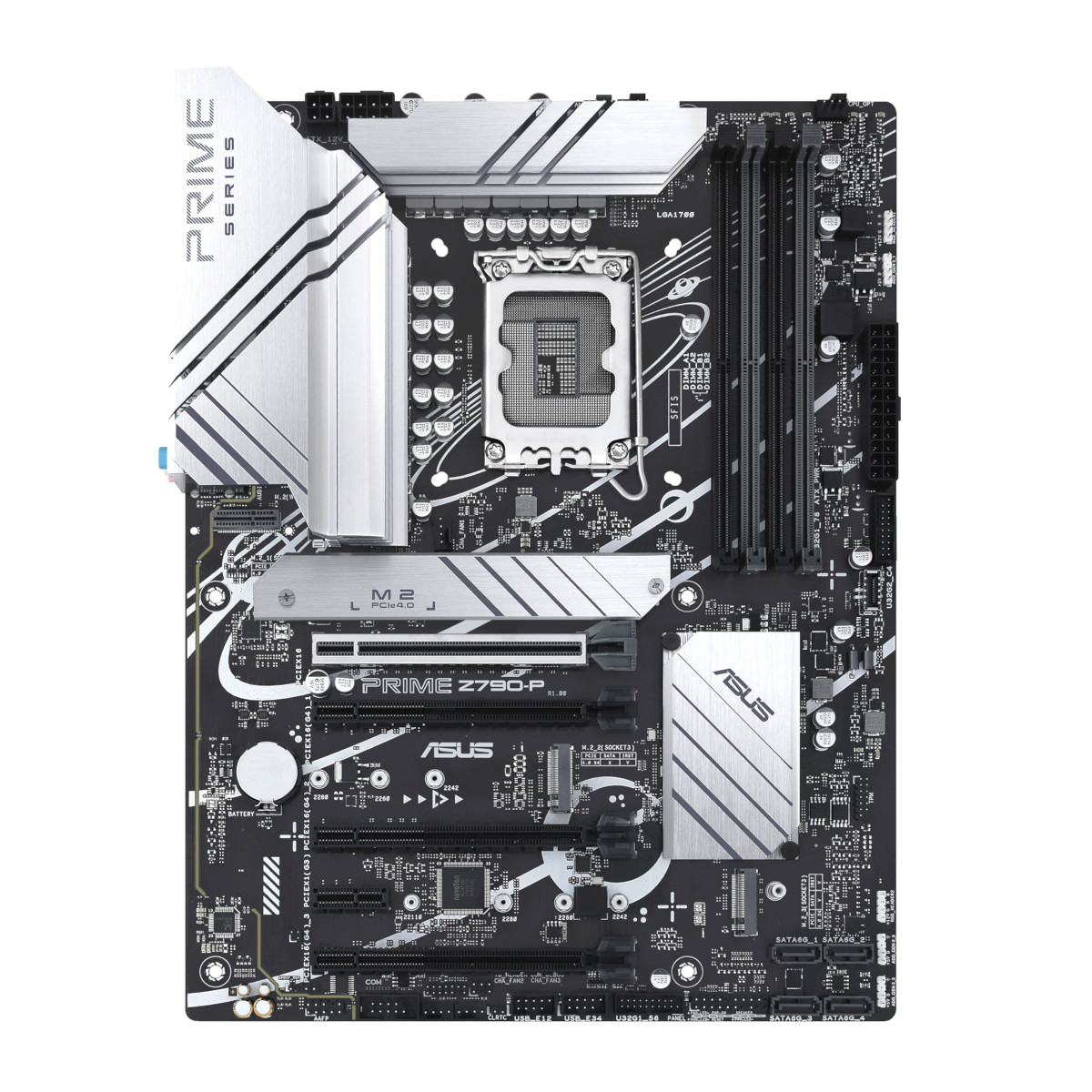

PLACA 1700 ATX ASUS PRIME Z790-P 4xDDR5 / HDMI / USB3.2

PLACA ASUS PRIME Z790-P / ATX / SOCKET 1700 / 4xDDR5 / DP / HDMI / USB3.2 / USB TIPO-C. Para procesadores Gen12 y Gen13.

SKU: ASUS-Z790-P Categoría:

Descripción

Factor de Forma ATX
Chipset Intel Z790
CPU Soportados
Intel Socket 1700 para 13ª Generación de procesadores Core y 12ª Generación de procesadores Core, Pentium Gold
y Celeron
Visita la siguiente Web de Asus para ver CPU Compatibles:
Memoria 4 x DIMM, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory
Dual Channel
Soporta Intel XMP y OptiMem II
Slots Expansion
1 x PCIe 5.0 x16 slot

3 x PCIe 4.0 x16 slots (support x4)
1 x PCIe 3.0 x1 slot

Graficos 1 x DisplayPort (hasta 4K@60Hz displayport 1.4)
1 x HDMI (hasta 4K@60Hz HDMI 2.1)
Conectores Internos E/S 1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
3 x Addressable Gen 2 headers
2 x Aura RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-5pin System Panel header
1 x Thunderbolt™ (USB4®) Header

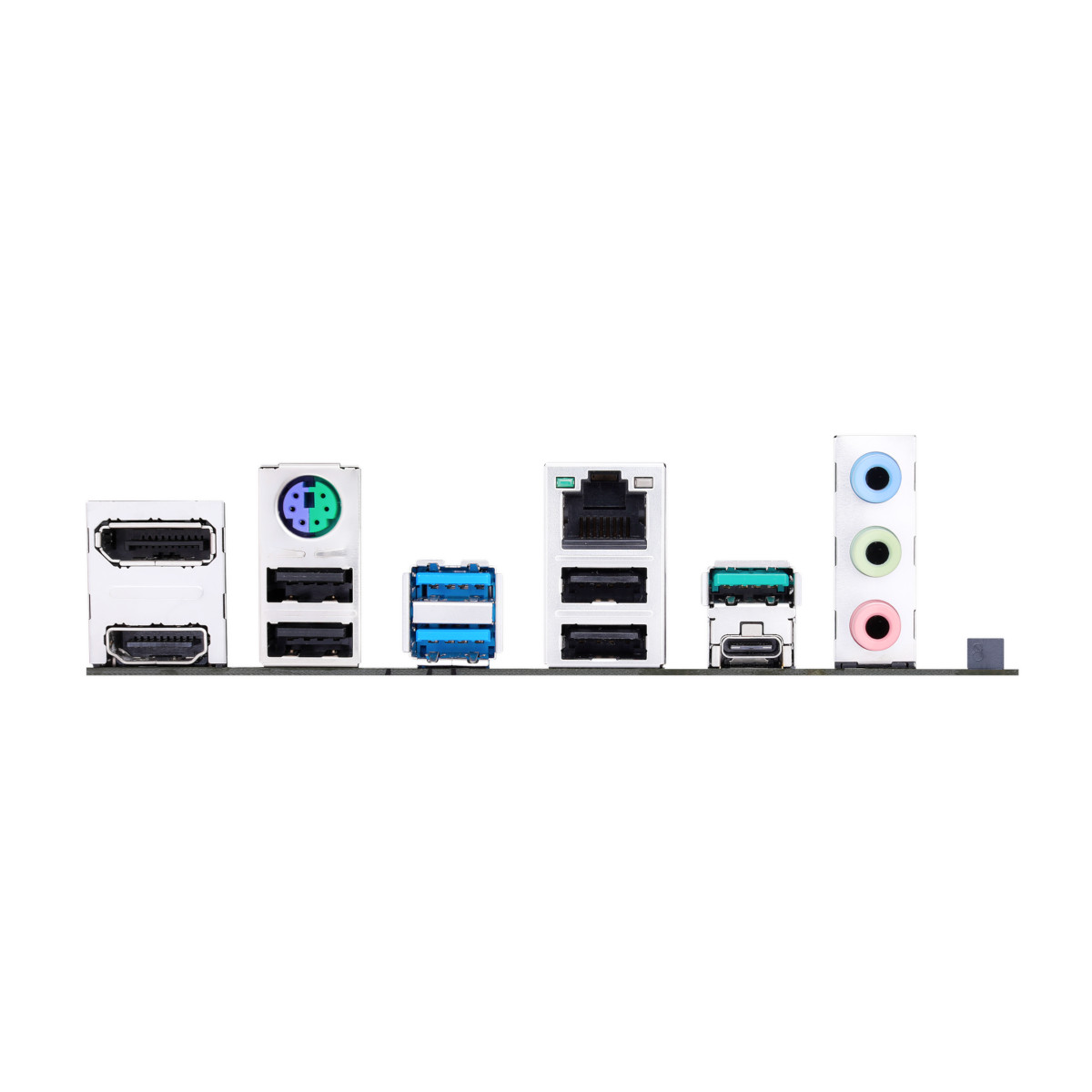

Panel E/S Trasero 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC
LAN
1 x Realtek 2.5Gb Ethernet
Almacenamiento
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA)
4 x SATA 6Gb/s
Intel Rapid Storage supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10
USB
Traseros: 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C); 1 x USB 3.2 Gen 2 port (1 x Type-A); 2 x USB 3.2 Gen 1 ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A)
Delanteros: 1 x USB 3.2 Gen 2 connector (supports USB Type-C); 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Información adicional

*Formato Placa

ATX

*Tipo de Memoria

DIMM DDR5

*Zócalo

Intel 1700
