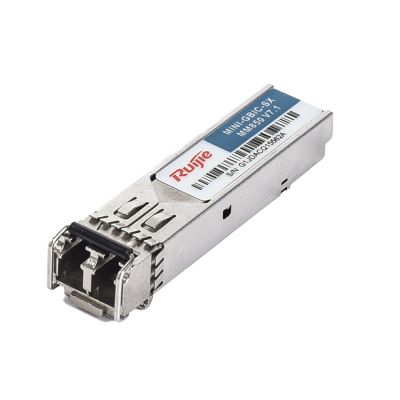

TRANSCEIVER SFP MULTIMODO LC DUPLEX 1Gb 850nm 550M REYEE

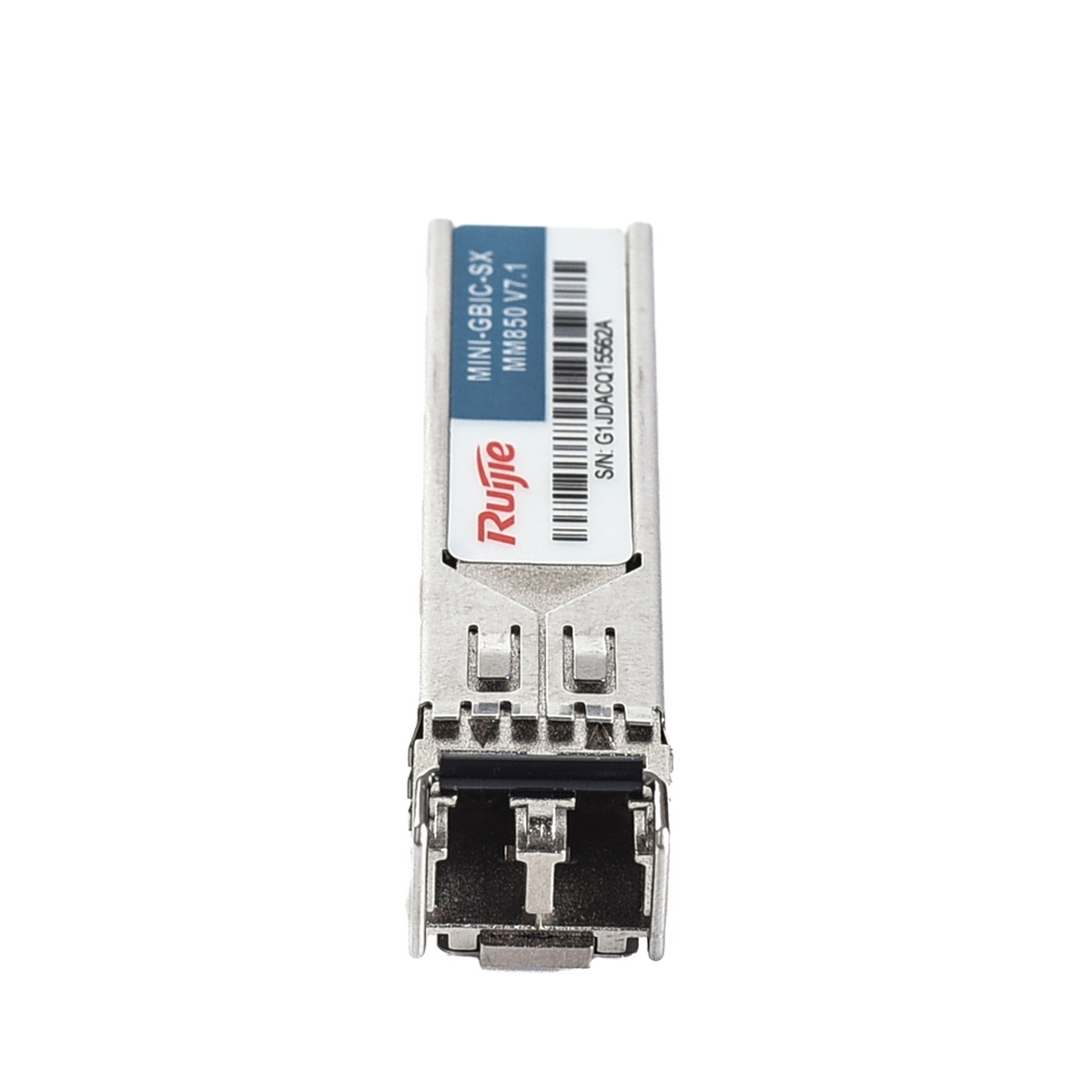

TRANSCEIVER SFP MULTIMODO LC DUPLEX 1Gb 850nm 550M REYEE - Imagen 2

TRANSCEIVER SFP MULTIMODO LC DUPLEX 1Gb 850nm 550M REYEE

Nuevo

Transceiver SFP Multimodo LC Duplex 1Gb 850nm 550m REYEE. Ref: RG-MINI-GBIC-SX-MM850

SKU: RED-RG-M-GB-SX-MM850 Categoría:

Descripción

Module Specifications
Data rate 1.25 Gbps
Form factor SFP
Connector type Duplex LC
Cable type MMF
Fiber end face finish type Ultra Physical Contact (UPC)
Transmitter type VCSEL
Receiver type PIN
Reach 550 m (1,804.46 ft.)
Bit error ratio (BER) 1.00E-12
Data diagnosis-capable (DDM/DOM) Yes
Power consumption ≤ 1.5 W
Transmitter Optical Parameters
Wavelength (nm) 850
Max. transmit power (AVG) 0 dBm
Min. transmit power (AVG) –9.5 dBm
Min. extinction ratio ≥ 9 dB
Receiver Optical Parameters
Receive sensitivity (OMA) < –17 dBm
Overload optical power (AVG) 0 dBm
Environment and Reliability
Operating temperature 0°C to 70°C (32°F to 158°F)
Operating humidity 10% RH to 90% RH
Storage temperature –40°C to +85°C (–40°F to +185°F)
Storage humidity 10% RH to 90% RH
Dimensions and Weight
Dimensions (W x D x H) 56.5 mm x 13.5 mm x 8.5mm (2.22 in. x 0.53 in. x 0.33 in.)
Weight 35 g (0.08 lbs.)
