TRANSCEIVER SFP+ MULTIMODO LC DUPLEX 10Gb 850nm 300M REYEE

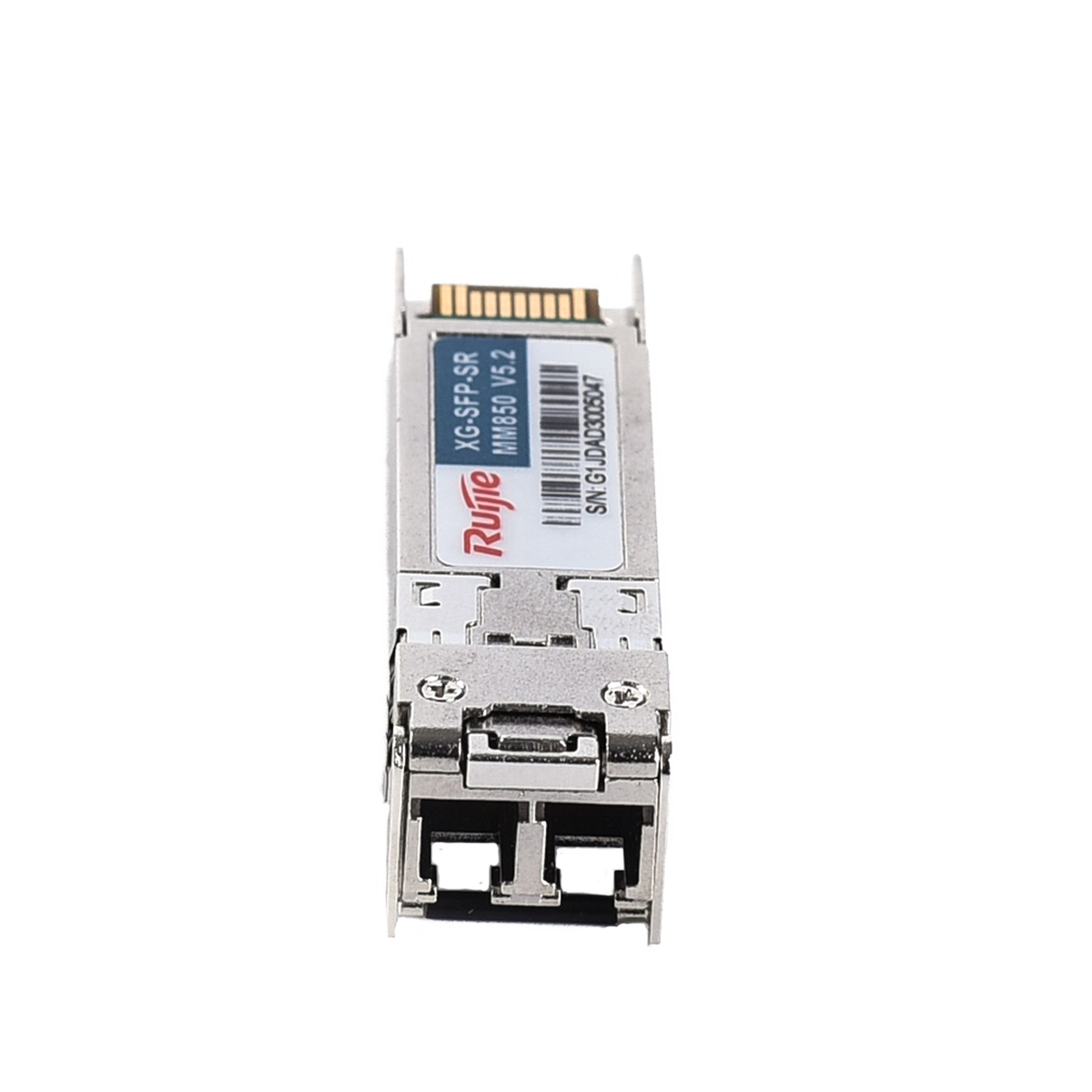

TRANSCEIVER SFP+ MULTIMODO LC DUPLEX 10Gb 850nm 300M REYEE - Imagen 2

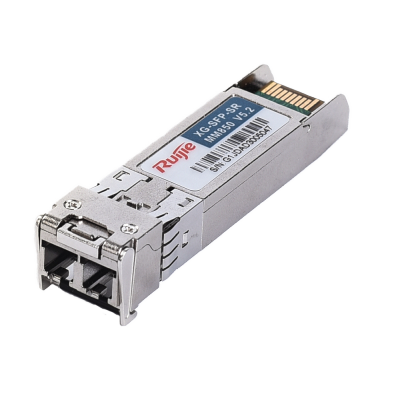

TRANSCEIVER SFP+ MULTIMODO LC DUPLEX 10Gb 850nm 300M REYEE

Nuevo

Transceiver SFP+ Multimodo LC Duplex 10Gb 850nm 300m REYEE. Ref: RG-XG-SFP-SR-MM850

SKU: RED-RG-X-S-SR-MM850 Categoría:

Descripción

Module Specifications
Data rate 10.3125 Gbps
Form factor SFP+
Connector type Duplex LC
Cable type MMF
Fiber end face finish type Ultra Physical Contact (UPC)
Transmitter type VCSEL
Receiver type PIN
Reach 300 m (984.25 ft., with OM3 optical cables) / 400 m (1312.34 ft., with OM4 optical cables)
Bit error ratio (BER) 1.00E-12
Data diagnosis-capable (DDM/DOM) Yes
Power consumption ≤ 1.5 W
Transmitter Optical Parameters
Wavelength (nm) 850
Max. transmit power (AVG) -1 dBm
Min. transmit power (AVG) –7,3 dBm
Min. extinction ratio ≥ 3,0 dB
Receiver Optical Parameters
Receive sensitivity (OMA) < –11,1 dBm
Overload optical power (AVG) -1 dBm
Environment and Reliability
Operating temperature 0°C to 70°C (32°F to 158°F)
Operating humidity 10% RH to 90% RH
Storage temperature –40°C to +85°C (–40°F to +185°F)
Storage humidity 10% RH to 90% RH
Dimensions and Weight
Dimensions (W x D x H) 56.5 mm x 13.5 mm x 8.5mm (2.22 in. x 0.53 in. x 0.33 in.)
Weight 35 g (0.08 lbs.)
