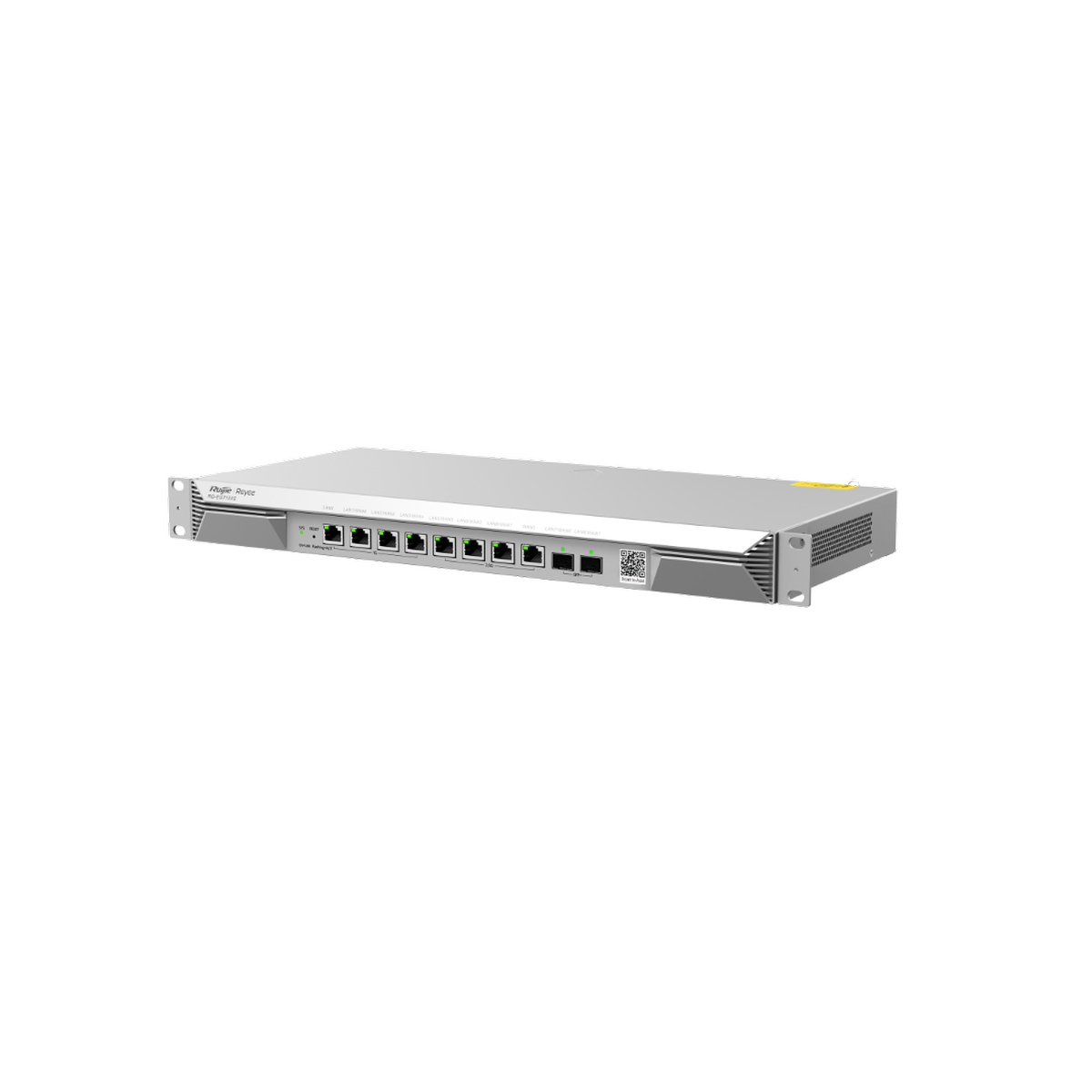

ROUTER REYEE EG710XS 4x1G + 4x2,5G + 2xSFP+

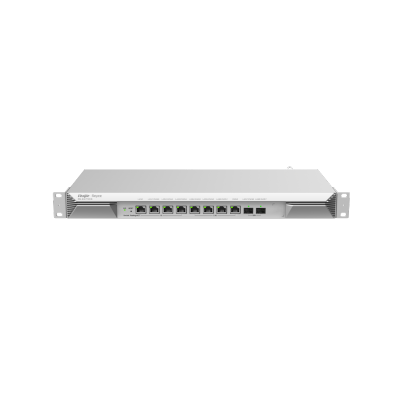

ROUTER REYEE EG710XS 4x1G + 4x2,5G + 2xSFP+ - Imagen 2

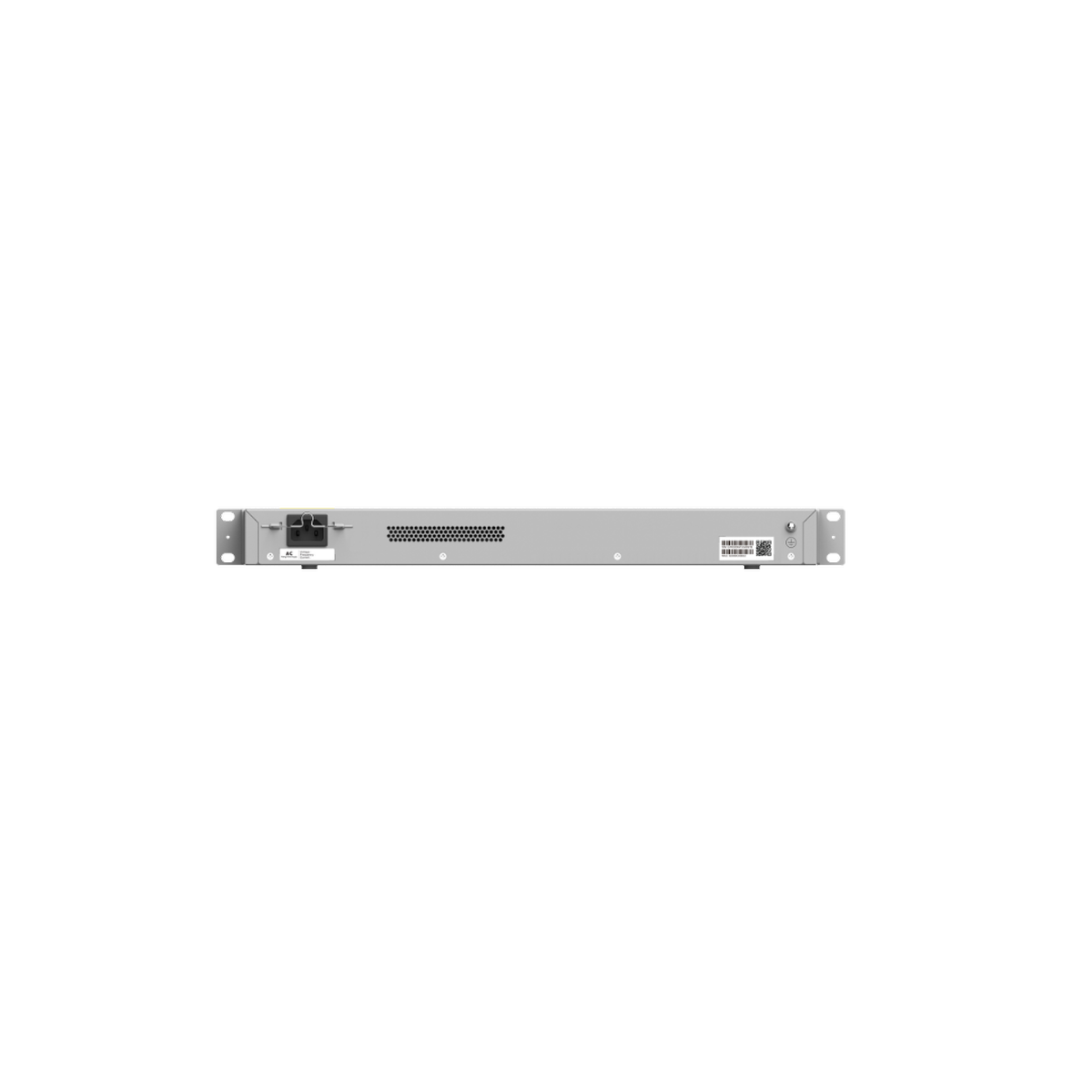

ROUTER REYEE EG710XS 4x1G + 4x2,5G + 2xSFP+ - Imagen 3

ROUTER REYEE EG710XS 4x1G + 4×2,5G + 2xSFP+

Nuevo

Router Reyee RG-RG-EG710XS 10 puertos, 700 clientes simultáneos, rendimiento de 3 Gbps, 300 túneles Ruijie Cloud management

SKU: RED-RG-EG710XS Categoría:

Descripción

Port Specifications
Number of ports 4 x 10/100/1000BASE-T ports / 4 x 10/100/1000/2500BASE-T ports / 2 x 0GE SFP+ ports
Number of LAN ports / Fixed 1
Number of WAN ports / Fixed 1
System Specifications
CPU Quad-core processor, 1.8 GHz clock frequency per core
Flash memory 256 Mb
RAM 2 Gb
Power Supply and Consumption
PoE budget No
Number of PoE Out ports No
PoE budget per port No
PoE Out standard No
Dimensions and Weight
Product dimensions (W x D x H) 440 mm x 210 mm x 43,6 mm
Weigh 3,5 kg
System Performance Capacity
Maximum number of concurrent sessions 150000
Recommended number of concurrent clients 700
Throughput 3000 Mbps
Basic Configurations
AC mode Si
Automatically identifying the Internet access mode and obtaining IP addresses Si
Automatically learning the PPPoE username and password of other routers Si
Configuration backup Si
Restoring factory default Si
Internet access mode Static IP address
Static IPv6 address
Dynamic IP address
Dynamic IPv6 address
PPPoE
Local upgrade Si
Log upload Si
Online upgrade Si
Authentication
Portal authentication Si
One-click authentication Si
Password authentication Si
SMS-based authentication Si
Voucher authentication supported by Ruijie Cloud portal page Si
Cloud portal authentication Si
Local portal authentication Si
QR code authentication Si
Custom portal page Si
Account-based authentication supported by Ruijie Cloud portal page Si
CHAP, MS-CHAPv1, MS-CHAPv2 Si
802.1X authentication Si
MAC address-based authentication Si
PPPoE server Si
Number of accounts supported by the PPPoE server 700
Number of concurrent clients supported by the PPPoE server 500
PAP Si
RADIUS authentication Si
RADIUS client Si
RADIUS accounting based on time or traffic Si
RADIUS flow control authorization Si
RADIUS proxy server Si
RADIUS traffic quota authorization Si
RADIUS user group authorization Si
RADIUS user group authorization Si
Third-party authentication Si
Ethernet Interface
Avoiding IP address conflicts on WAN interfaces Si
Load balancing Si
MAC address cloning Si
802.1X authentication Si
MAC address-based authentication Si
Multiple WAN interfaces on the same network segment Si
PPPoE clients Si
Scheduled PPPoE reconnection No
Ethernet Switching
Configuring multiple VLANs upon configuration delivery No
Link aggregation No
LLDP No
VLAN Si (Max 128)
VLAN configuration supported on LAN ports Si
Super-VLAN No
Configuring the same VLAN tag for multiple WAN ports No
VLAN priority Si
Gateway Features
WAN failover Si
Application priority Si
Application recognition Si
Software Specifications
Behavior management Si
QoS Si
Time-based blocking policyIP address-based blocking policy Si
Website filtering: custom URL Si
Traffic audit Si
URL audit log Si
Audit log server Si
Audit log storage No
Uploading audit logs to a serve Si
IP Routing
Application-based routing Sí
Bandwidth aggregation Si
BGP/BGP4/BGP4+/ECMP Sí/Sí/Sí/No
IPv4 static route Si
IPv6 PBR Si
IPv6 static route Si
IS-ISv4/IS-ISv6 No/No
Load balancing based on flows Si
Load balancing based on source IP addresses
 Si
Load balancing based on the interface weight Si
Route selection by link quality Sí
OSPFv2/OSPFv3/RIP/RIPng Sí/Sí/Sí/Sí
IP Service
3322.org Si
ALG Si
ARP binding Si
Maximum number of ARP entries 2048
Proxy ARP No
Cloudflare Si
DHCP client Si
DHCP server Si
DHCP relay Si
Option 43/138 Si/Si
Static/Dynamic NAT Si
NAT-PT No
NAT loopback Si
DNS client Si
DNS server Si
No-IP DNS Sí
GRE tunnel No
IPTV Si
IPv4 ping Si
IPv6 Si
IPv6 ping Si
Number of port mapping entries 512
Port mapping Si
DDNS Si
Ruijie DDNS Si
Alibaba Cloud DDNS Si
UPnP Sí
Network Management and Monitoring
Web management Si
Ruijie Cloud management Si
Management on Ruijie Reyee App Si
Remotely monitoring devices through Ruijie Reyee App Si
Restarting devices through Ruijie Reyee App Si
Upgrading device software version through Ruijie Reyee App Si
Fault diagnosis Si
FTP client (IPv4 address) No
FTP server (IPv4 address) No
TFTP client (IPv4 address) Si
TFTP server (IPv4 address) No
HTTPS login Si
NTP client Si
NTP server No
Scheduled device restart Si
SNMPv1, v2c, and v3 Si
SON/SSH/Telnet Si/No/No
Maximum number of managed devices (router mode) AP and NBS series: 750
ES series: 128
Maximum number of managed devices (AC mode) AP and NBS series: 750
ES series: 128
Reliability
Stacking No
VRRP No
SD-WAN
SD-WAN Si
SD-WAN performance 1100 Mbps
Number of tunnels supported by SD-WAN 1500
Maximum number of SD-WAN branches 300
Active/Standby mode (automatically switching to the standby interface when the active interface fails) Si
Bypass networking for a device in AP mode No
Centralized traffic forwarding policy Si
Security
ACL Si
DHCP snooping No
Malformed packet attack defense Si
Fragmentation attack defense Sí
Teardrop attack defense Si
LAND attack defense Si
SYN flood attack defense Si
Smurf attack defense Si
IP attack defense Si
Disabling ping Si
Stateful ACL Si
Network sharing prevention Si
IP-MAC binding Si
Security log Si
Security zone Si
User group-based connection limiting Si
VPN
IPsec VPN Si
IPsec VPN bandwidth 1100 Mbps
Maximum number of branches in IPsec VPN networking 300
L2TP VPN Si
L2TP VPN bandwidth 1100 Mbps
Maximum number of branches in L2TP VPN networking 300
OpenVPN Sí
OpenVPN bandwidth 350 Mbps
Maximum number of branches in OpenVPN networking 300
PPTP VPN Si
PPTP VPN bandwidth 1700 Mbps
Maximum number of branches in PPTP VPN networking 300
SSL VPN No
Easy VPN 1.0 No
Number of VPN accounts for L2TP, PPTP, and OpenVPN 700
WireGuard server Si
WireGuard client Si
WireGuard performance 1100 Mbps
Number of concurrent tunnels supported by the WireGuard server 300
WLAN
Maximum number of APs (AC mode) 750
Maximum number of devices that can be managed 128
Wireless Intelligent Optimization (WIO) Si
