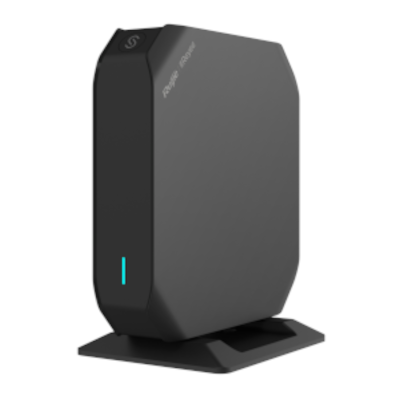

ROUTER REYEE EG105GW-T 5x 10/100/1000 WIFI 5

Router Reyee RG-EG105GW(T) (5x Giga) Wi-Fi 5.

SKU: RED-RG-EG105GW(T) Categoría:

Descripción

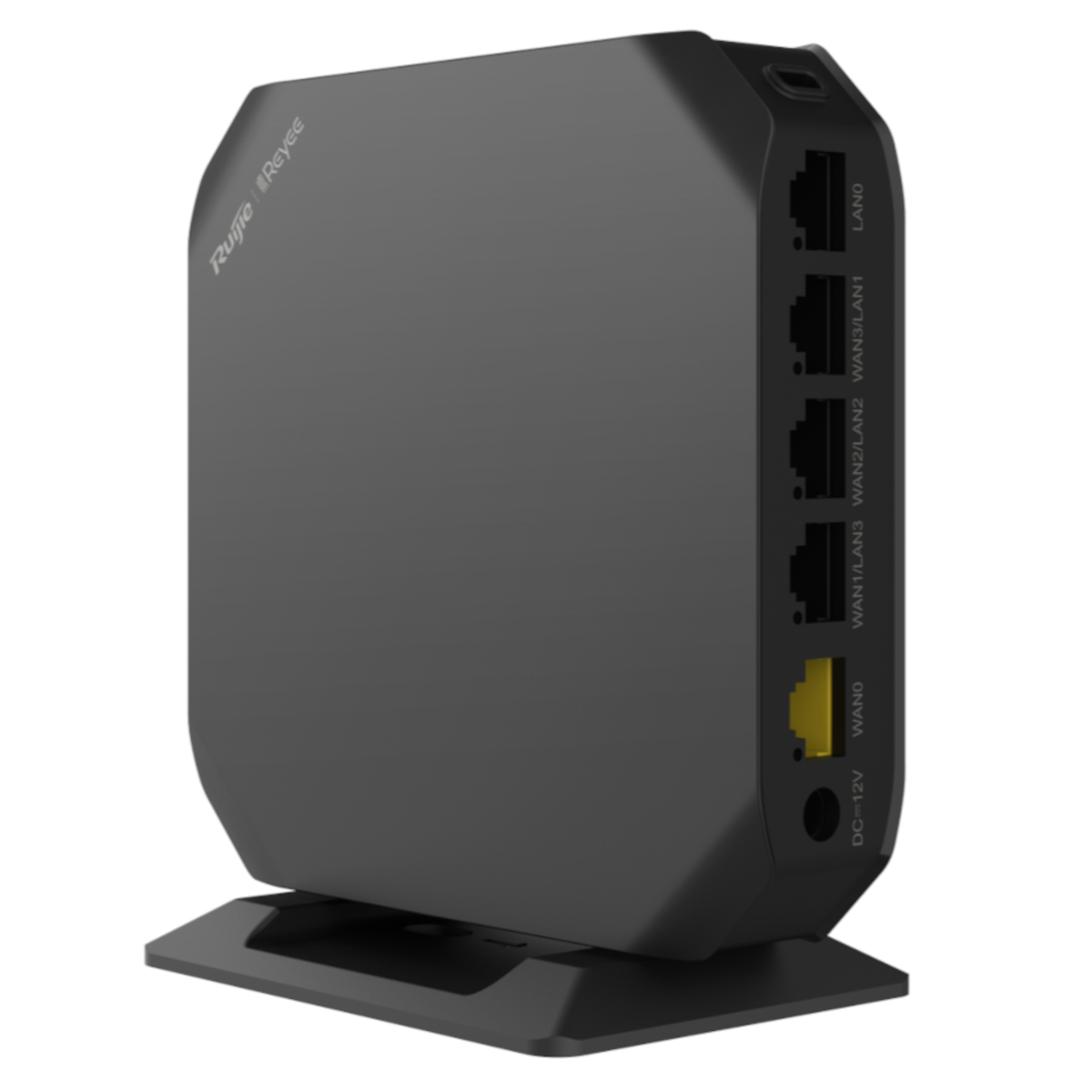

Port Specifications
Number of 10/100/1000BASE-T ports 5
Number of LAN ports / Fixed 4/1
Number of WAN ports / Fixed 4/1
System Specifications
CPU Dual-core processor, 880 MHz clock frequency per core
Flash memory 32 Mb
RAM 256 Mb
Power Supply and Consumption
PoE budget No
Number of PoE Out ports No
PoE budget per port No
PoE Out standard No
Dimensions and Weight
Product dimensions (W x D x H) 120 mm x 120 mm x 28 mm
Weigh 0.251 kg
System Performance Capacity
Maximum number of concurrent sessions 1200
Recommended number of concurrent clients 150
Throughput 700 Mbps
Wi-Fi Radio
Operating band IEEE 802.11b/g/n, 2.400 GHz to 2.4835 GHz
IEEE 802.11a/n/ac, 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz
Wi-Fi Standard 2,4 GHz:Wi-Fi 4 (IEEE 802.11b/g/n)

5 GHz: Wi-Fi 4 (IEEE 802.11a/n)
Wi-Fi 5 (IEEE 802.11ac)
Wireless data rate 2.4 GHz, 400 Mbps
5 GHz, 866 Mbps
Radio design Dual-radio
4 spatial streams
2.4 GHz: 2 x 2, MIMO
5 GHz: 2 x 2, MIMO
Maximum transmit power (2.4 GHz, 5GHz) 2,4 GHz: Combined power 29 dBm
5 GHz: Combined power 29 dBm
Coverage 115 m2
Note: The data is obtained in an ideal environment without obstruction. The signal coverage radius depends on client performance and environmental interference.
Antenna
Antenna Integrated 2.4 GHz and 5 GHz: 2 built-in omnidirectional antennas
Antenna gain (2.4 GHz) No
Antenna gain (5 GHz) No
Basic Configurations
AC mode No
Automatically identifying the Internet access mode and obtaining IP addresses Si
Automatically learning the PPPoE username and password of other routers Si
Configuration backup Si
Internet access mode Static IP address
Static IPv6 address
Dynamic IP address
Dynamic IPv6 address
PPPoE
Local upgrade Si
Log upload Si
Online upgrade Si
Authentication
Portal authentication Si
One-click authentication Si
Password authentication Si
SMS-based authentication Si
Voucher authentication supported by Ruijie Cloud portal page No
Cloud portal authentication Si
Local portal authentication Si
QR code authentication Si
Custom portal page No
Account-based authentication supported by Ruijie Cloud portal page No
CHAP, MS-CHAPv1, MS-CHAPv Si
Account-based authentication supported by Ruijie Cloud portal page No
802.1X authentication Si
Account-based authentication supported by Ruijie Cloud portal page No
MAC address-based authentication Si
PPPoE server Si
Number of accounts supported by the PPPoE server 50
Number of concurrent clients supported by the PPPoE server 15
PAP Si
RADIUS authentication Si
RADIUS client Si
RADIUS accounting based on time or traffic Si
RADIUS flow control authorization No
RADIUS proxy server Si
RADIUS traffic quota authorization Si
RADIUS user group authorization Si
Third-party authentication Si
Ethernet Interface
Avoiding IP address conflicts on WAN interfaces Si
Load balancing Si
MAC address cloning Si
802.1X authentication Si
MAC address-based authentication No
Multiple WAN interfaces on the same network segment Si
PPPoE clients Si
Scheduled PPPoE reconnection No
Ethernet Switching
Configuring multiple VLANs upon configuration delivery No
Link aggregation No
LLDP No
VLAN Si
VLAN configuration supported on LAN ports 16
Super-VLAN No
Configuring the same VLAN tag for multiple WAN ports No
VLAN priority Si
Number of MAC address entries to be filtered 256
Gateway Features
WAN failover Si
Application priority Si
Application recognition Si
Gateway Features
WAN failover Si
Application priority Si
Behavior management Si
Flow control Si
Time-based blocking policyIP address-based blocking policy Si
Website filtering: custom URL Si
Traffic audit Si
URL audit log Si
Audit log server Si
Audit log storage No
Application recognition Si
Uploading audit logs to a server Si
IP Routing
Application-based routing Si
Bandwidth aggregation Si
BGP/BGP4/BGP4+/ECMP No/No/No/No
IPv4 static route Si
IPv6 PBR Si
IPv6 static route Si
IS-ISv4/IS-ISv6 No/No
Load balancing based on flows Si
Load balancing based on source IP addresses
 Si
Load balancing based on the interface weight Si
Route selection by link quality No
OSPFv2/OSPFv3/RIP/RIPng No/No/Si/Si
IP Service
3322.org Si
ALG Si
ARP binding Si
Maximum number of ARP entries 1024
Proxy ARP No
Cloudflare Si
DHCP client Si
DHCP server Si
DHCP server Si
DHCP relay No
Option 43/138 Si/Si
Static/Dynamic NAT Si
NAT-PT No
NAT loopback Si
DNS client Si
DHCP Proxy Si
DNS server Si
No-IP DNS Si
GRE tunnel No
IPTV Si
IPv4 ping Si
IPv6 Si
IPv6 ping Si
Number of port mapping entries 256
Port mapping Si
DDNS Si
Ruijie DDNS Si
Alibaba Cloud DDNS Si
UPnP Si
MPLS
MPLS L2VPN No
Network Management and Monitoring
Web management Si
Ruijie Cloud management Si
Management on Ruijie Reyee App Si
Remotely monitoring devices through Ruijie Reyee App Si
Restarting devices through Ruijie Reyee App Si
Upgrading device software version through Ruijie Reyee App Si
Fault diagnosis Si
FTP client (IPv4 address) No
FTP server (IPv4 address) No
TFTP client (IPv4 address) Si
TFTP server (IPv4 address) No
HTTPS login Si
NTP client Si
NTP server No
Scheduled device restart Si
SNMPv1, v2c, and v3 Si
SON/SSH/Telnet Si/No/No
Maximum number of managed devices (router mode) No
Maximum number of managed devices (AC mode) No
Reliability
Stacking No
VRRP No
SD-WAN Si
SD-WAN performance 80 Mbps
Number of tunnels supported by SD-WAN 24
Maximum number of SD-WAN branches 8
Active/Standby mode (automatically switching to the standby interface when the active interface fails) Si
Load balancing by link weight Si
Bypass networking for a device in AP mode No
Centralized traffic forwarding policy Si
Multi-WAN link bundling efficiency (lab data) >= 80%
Ruijie Rapid Link Detection Protocol
Network detection switching time <= 10s
Security
IPsec VPN No
ACL Si
Extended ACL Si
DHCP snooping No
Malformed packet attack defense Si
Fragmentation attack defense Si
Teardrop attack defense Si
LAND attack defense Si
SYN flood attack defense Si
Smurf attack defense Si
IP attack defense Si
Disabling ping Si
Stateful firewall Si
P-MAC binding Si
Network sharing prevention Si
Security log Si
Teardrop Security zonep attack defense No
Security zone Si
User group-based connection limiting Si
VPN
IPsec VPN Si
IPsec VPN bandwidth 24 Mbps
Maximum number of branches in IPsec VPN networking 8
L2TP VPN Si
L2TP VPN bandwidth 140 Mbps
Maximum number of branches in L2TP VPN networking 8
OpenVPN Si
OpenVPN bandwidth 15 Mbps
Maximum number of branches in OpenVPN networking 8
PPTP VPN Si
PPTP VPN bandwidth 140 Mbps
Maximum number of branches in PPTP VPN networking 8
SSL VPN No
Easy VPN 1.0 No
Number of VPN accounts for L2TP, PPTP, and OpenVPN 100
WireGuard server Si
WireGuard client Si
WireGuard performance 80 Mbps
Number of concurrent tunnels supported by the WireGuard server 8
WLAN
Maximum number of APs (AC mode) No
Maximum number of devices that can be managed No
Wireless Intelligent Optimization (WIO) Si
Access RSSI threshold Si
Different SSIDs for different APs Si
Forcibly disconnecting clients with low-weak signals Si
Global blocklist and allowlist Si
Power settings Si
Roaming sensitivity Si
User isolation Si
WMM Si

Información adicional

Características Switches

10/100/1000, 8P., No gestionable, PoE
