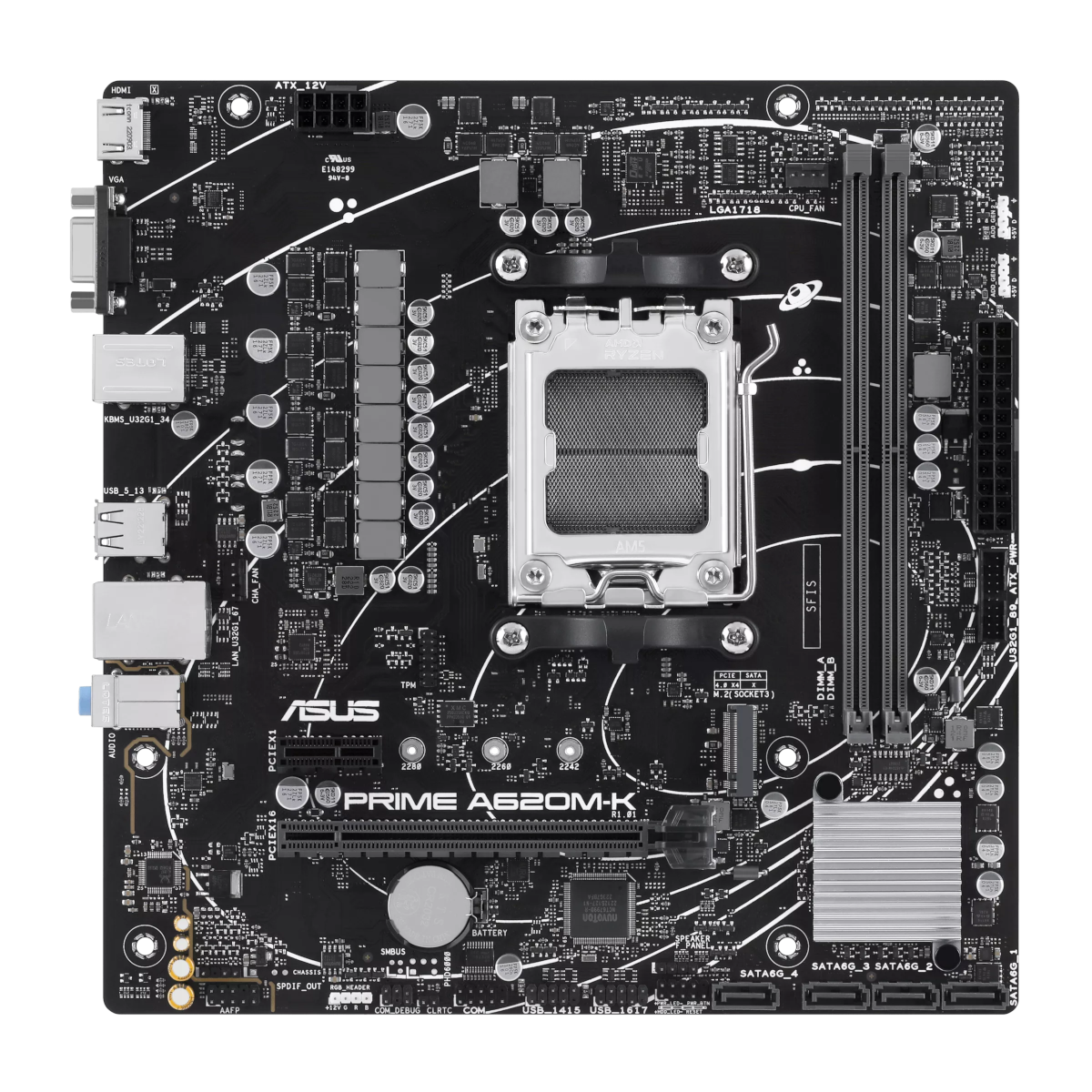

PLACA ASUS PRIME A620M-K SOCKET AM5 / 2xDDR5 / VGA / HDMI

Placa Asus Prime A620M-K / AM5 / 2xDDR5 / VGA / HDMI / USB 3.2

SKU: ASUS-A620M-K Categoría:

Descripción

Factor de Forma Micro ATX
Chipset AMD A620
CPU Soportados
AM5 para AMD Ryzen 9000, 8000 y 7000 (hasta 120W TDP)
Memoria
2 x DIMM slots, Max. 96GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 Non-ECC, Un-buffered Memory
Soporta Dual Channel
Soporta AMD Extended Profiles for Overclocking (EXPO) y OptiMem II
Slots Expansion
1 x PCIe 4.0 x16 slot (x16 mode) Ryzen serie 7000 y 9000
1 x PCIe 4.0 x16 slot (x8/x4 mode) Ryzen serie 8000
1 x PCIe 3.0 x1 slot
Graficos
1 x VGA
1 x HDMI 2.1 (hasta 4K y 60Hz)
Conectores Internos E/S 1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
2 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header

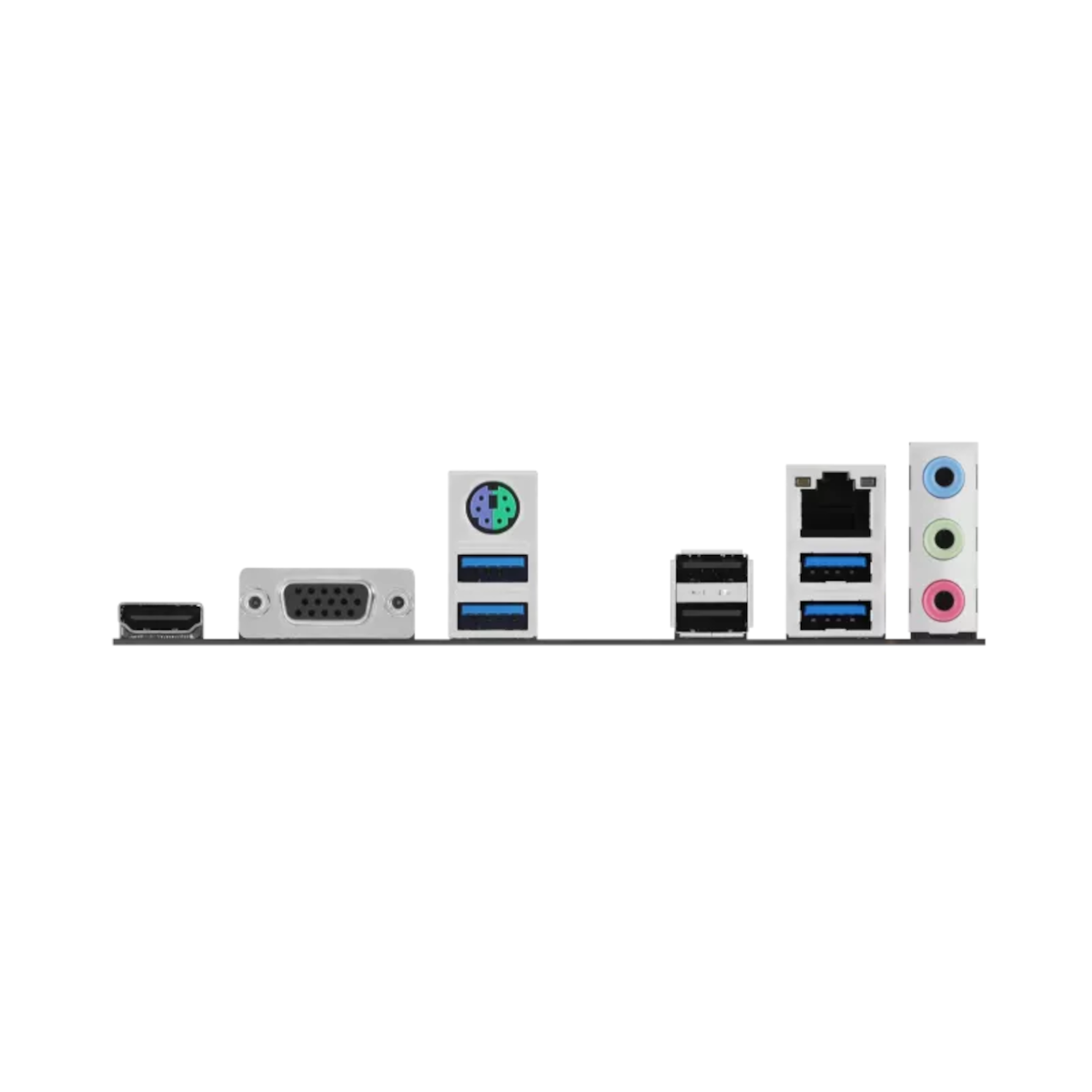

Panel E/S Trasero 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x VGA port
1 x HDMI port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC
LAN 1 x Realtek 1Gb Ethernet
Almacenamiento
4 x SATA 6Gb/s (RAID 0/1/10)
M.2 slot (Key M), type 2242/2260/2280 (PCIe 4.0 x4 mode)
USB
Traseros: 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A); 2 x USB 2.0 ports (2 x Type-A)
Delanteros: 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports;  2 x USB 2.0 headers support 4 additional USB 2.0 ports

Información adicional

*Formato Placa

Mini-ATX
*Tipo de Memoria

DIMM DDR5
*Zócalo

AM5
