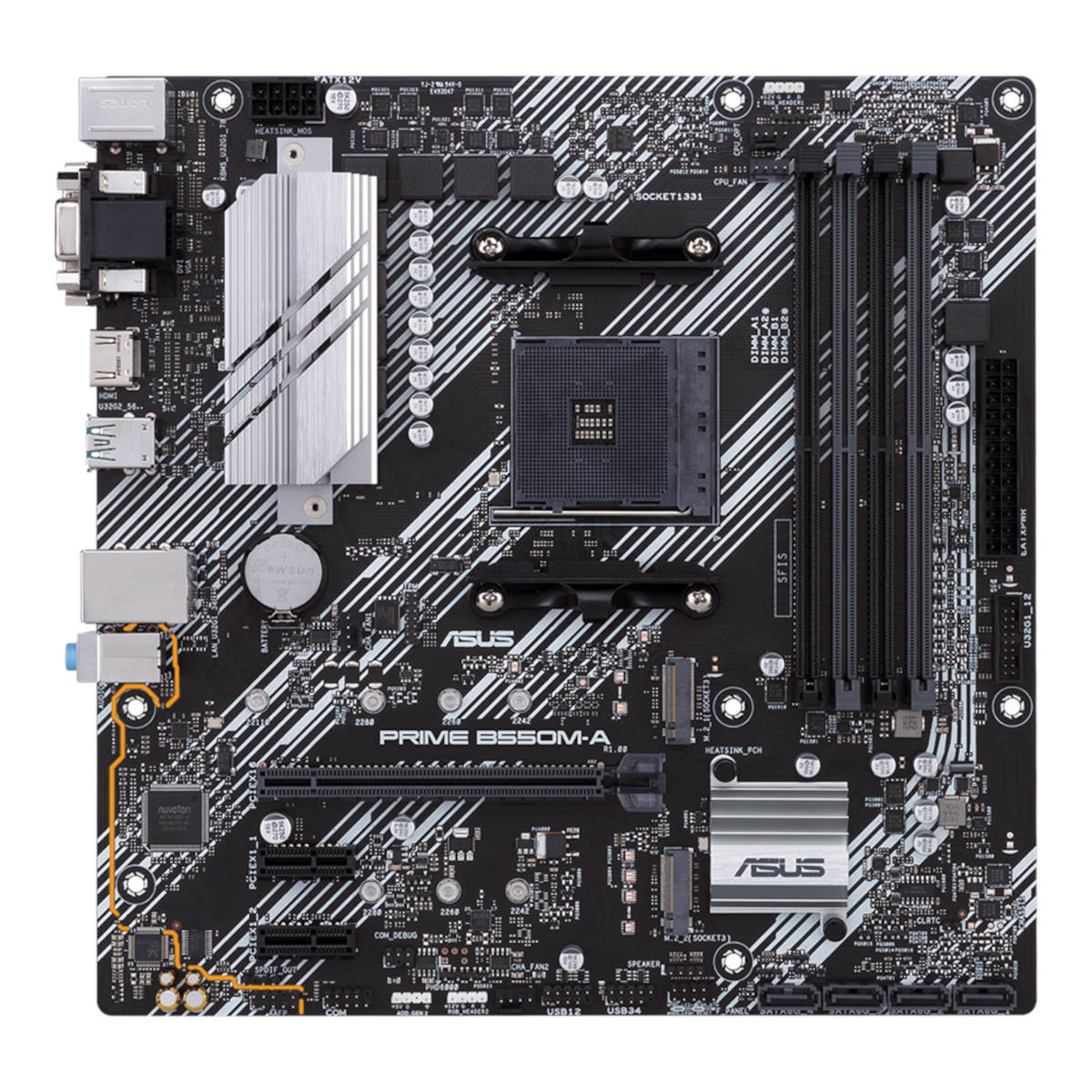

PLACA BASE ASUS B550M-A CSM
PLACA BASE ASUS B550M-A CSM
PLACA BASE ASUS B550M-A CSM

PLACA ASUS B550M-A CSM SOCKET AM4 / DDR4

Placa Asus Prime B550M-A CSM / AM4 / 4xDDR4 / VGA / DVI-D / HDMI / USB 3.2

SKU: ASUS-B550M-A/CSM Categoría:

Descripción

Factor de Forma Micro ATX
Chipset AMD B550
CPU Soportados
AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000
Memoria DIMM, Max. 128GB, DDR4 4866(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)
/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz
Un-buffered Memory
ECC Memory Compatible
Dual Channel
Slots Expansion
1 x PCIe 4.0 x16
2 x PCIe 3.0 x1
Graficos
1 x DVI-D
1 x HDMI 2.1
1 x D-sub
Conectores Internos E/S 1 x Conector(es) ventilador de CPU
1 x COM port header
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector
2 x Aura RGB Strip Headers
1 x Addressable Gen 2 header(s)
1 x SPI TPM header
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x Speaker connector

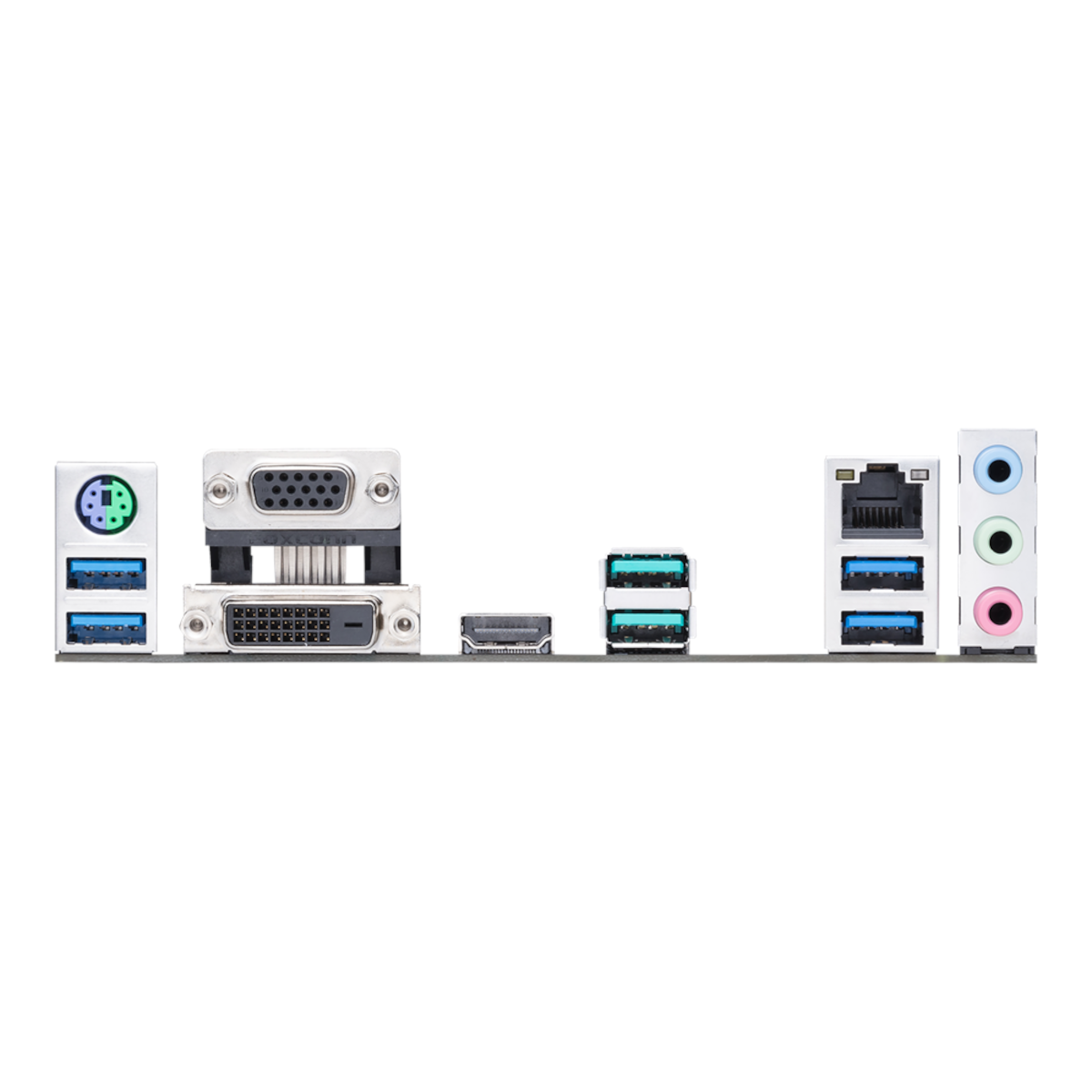

Panel E/S Trasero 2 x USB 3.2 Gen 2 (azul verdoso)
4 x USB 3.2 Gen 1 (azul)
1 x PS/2 keyboard/mouse combo
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45)
3 x Audio jack(s)
Audio
Realtek ALC887/8977
8 Channel High Definition Audio
LAN
Realtek RTL8111H
1 x Gigabit LAN
Almacenamiento
4 x SATA 6Gb/s – Raid (0/1/10)
2 x M.2 Socket M tipo 2242/2260/2280 (soporta SATA y PCIE 3.0 x4)
USB Traseros: 2 x USB 3.2 Gen 2 (2 x Tipo-A); 4 x USB 3.2 Gen 1 (Tipo-A)
Delanteros: 1 x USB 3.2 Gen 1 hasta 5Gbps (soporta 2 x USB 3.2 Gen 1 Tipo-A); 2 x USB 2.0 (soporta 4 x USB 2.0 Tipo-A)

Información adicional

*Formato Placa

Mini-ATX
*Tipo de Memoria

DIMM DDR4
*Zócalo

AMD AM4-3, AMD AM4-5
