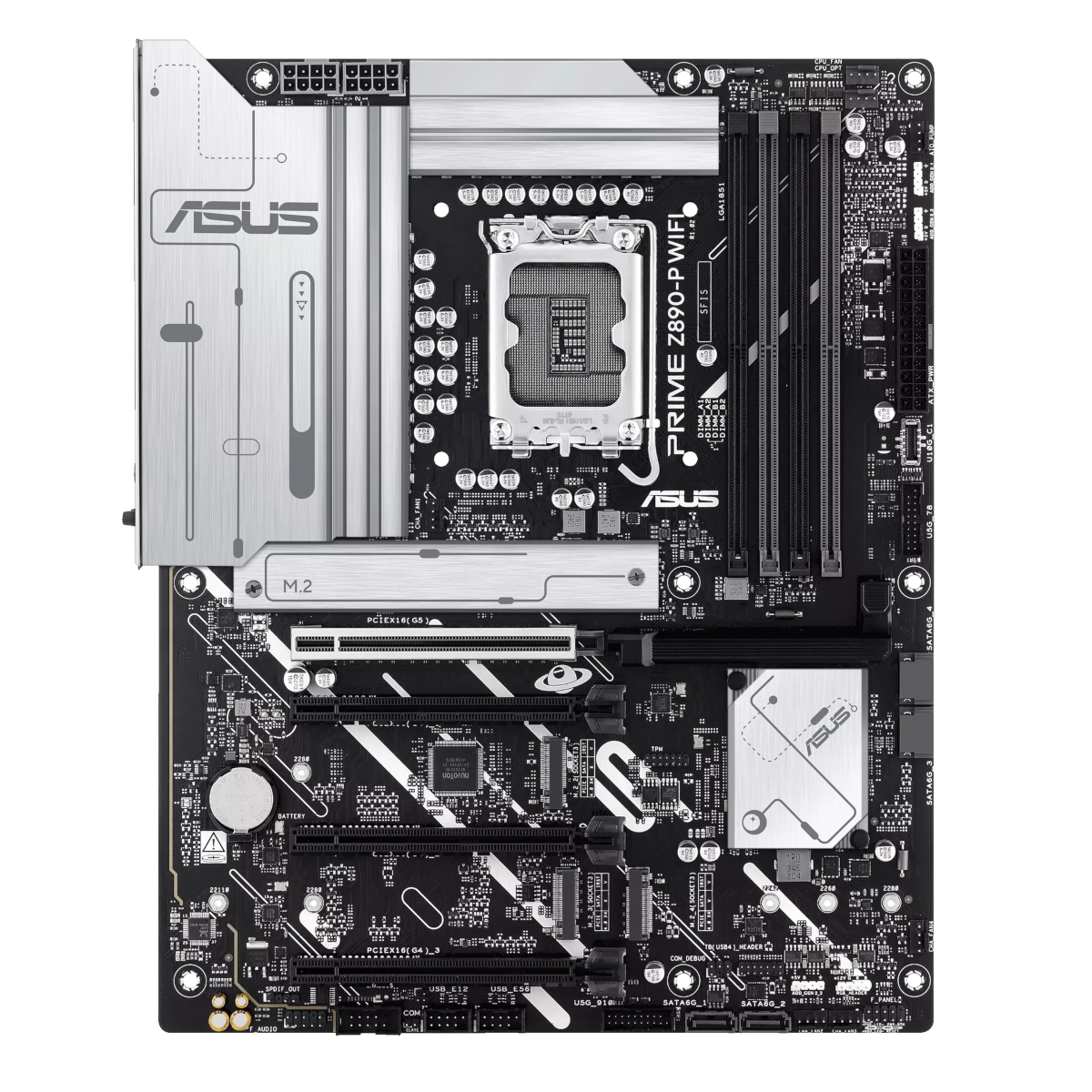

PLACA BASE ASUS Z890-P WIFI LGA1851
PLACA BASE ASUS Z890-P WIFI LGA1851
PLACA BASE ASUS Z890-P WIFI LGA1851

PLACA 1851 ATX ASUS PRIME Z890-P WIFI 4xDDR5 / HDMI / DP USB-C

PLACA ASUS PRIME Z890-P WIFI / ATX / SOCKET 1851 / 4xDDR5 / DP / HDMI / THUNDERBOLT 4 (USB TIPO-C.)

SKU: ASUS-Z890-P/W Categoría:

Descripción



Factor de Forma ATX
Chipset Intel Z890
CPU Soportados
Intel Socket 1851 para Core Ultra (Serie 2).
Visita la siguiente Web de Asus para ver CPU Compatibles:
Memoria 4 x DIMM slots, max. 256GB, DDR5 8666+MT/s (OC) Non-ECC, Un-buffered Memory
Clocked Unbuffered DIMM (CUDIMM)
Dual Channel
Soporta Intel XMP y AEMPIII
Slots Expansion 1 x PCIe 5.0 x16 slot
2 x PCIe 4.0 x16 slots (soporta x4 mode)
1 x PCIe 4.0 x16 slot (soporta x1 mode)
Graficos 1 x DisplayPort (hasta 4K@60Hz DisplayPort 1.4)
1 x HDMI (hasta 4K@60Hz HDMI 2.1)
1 x Intel Thunderbol 4 (USB Type-C) Soporta salidas DP1.4, HDMI2.1, VGA
Conectores Internos E/S 1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
3 x Addressable Gen2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin Front Panel System header
1 x Thunderbolt™ (USB4®) header

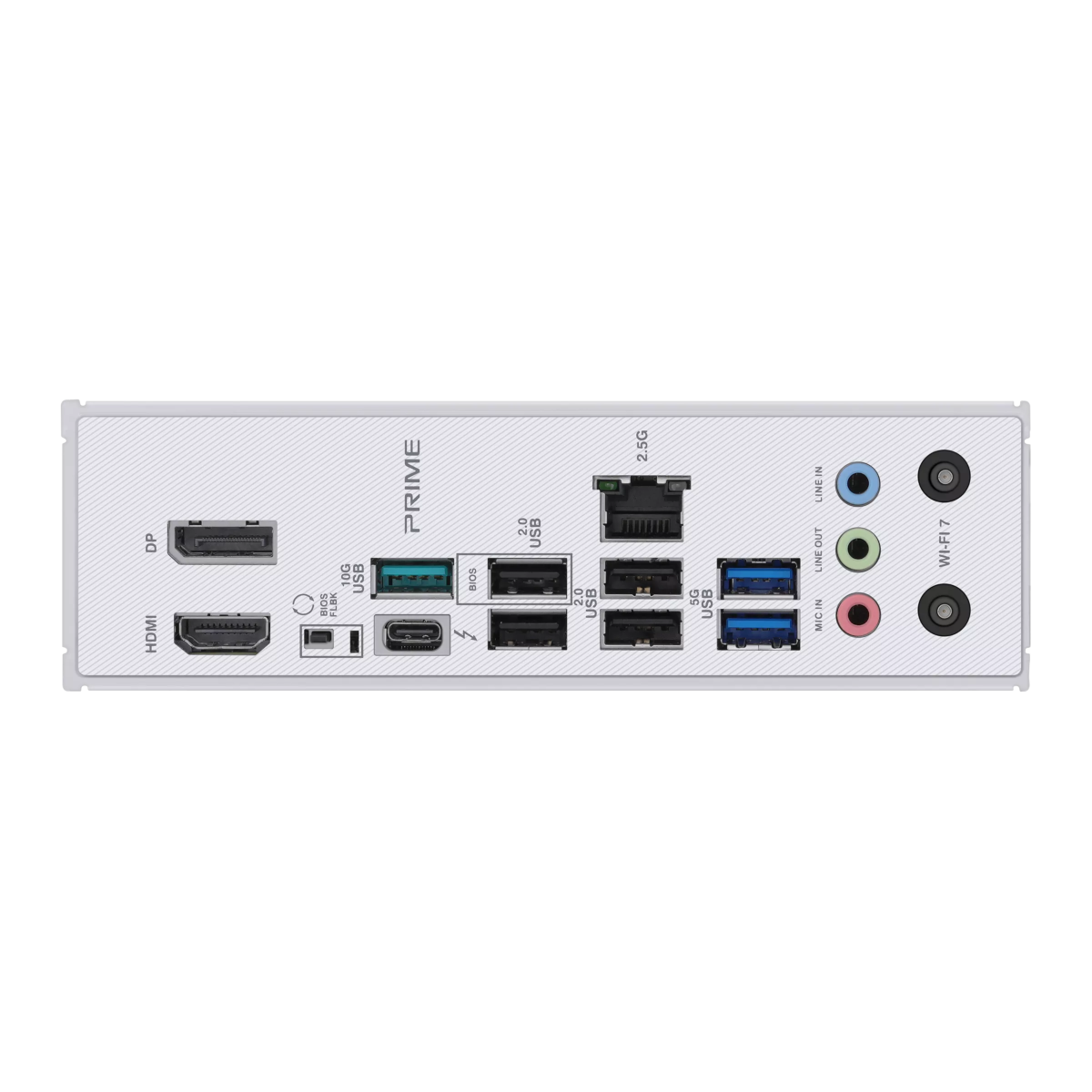

Panel E/S Trasero 1 x Thunderbolt™ 4 USB Type-C® port
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMITM port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack™ button
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC
Wireless & Bluetooth Wi-Fi 7*
2×2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth® v5.4
LAN
1 x Realtek 2.5Gb Ethernet
Almacenamiento
M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s
Intel® Rapid Storage Technology soporta PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10
USB
Traseros: 1 x Thunderbolt™ 4 (1 x USB Type-C®), 1 x USB 10Gbps port (1 x Type-A), 2 x USB 5Gbps ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A)
Delanteros: 1 x USB 10Gbps connector (soporta USB Type-C®), 2 x USB 5Gbps headers support 4x USB 5Gbps ports, 2 x USB 2.0 headers soporta hasta 4x USB 2.0 ports adicionales

Información adicional

*Formato Placa

ATX
*Tipo de Memoria

DIMM DDR5
*Zócalo

Intel 1851
