INYECTOR POE REYEE RG-POE-AT30
INYECTOR POE REYEE RG-POE-AT30

INYECTOR POE+ PASIVO REYEE RG-POE-AT30 GIGABIT

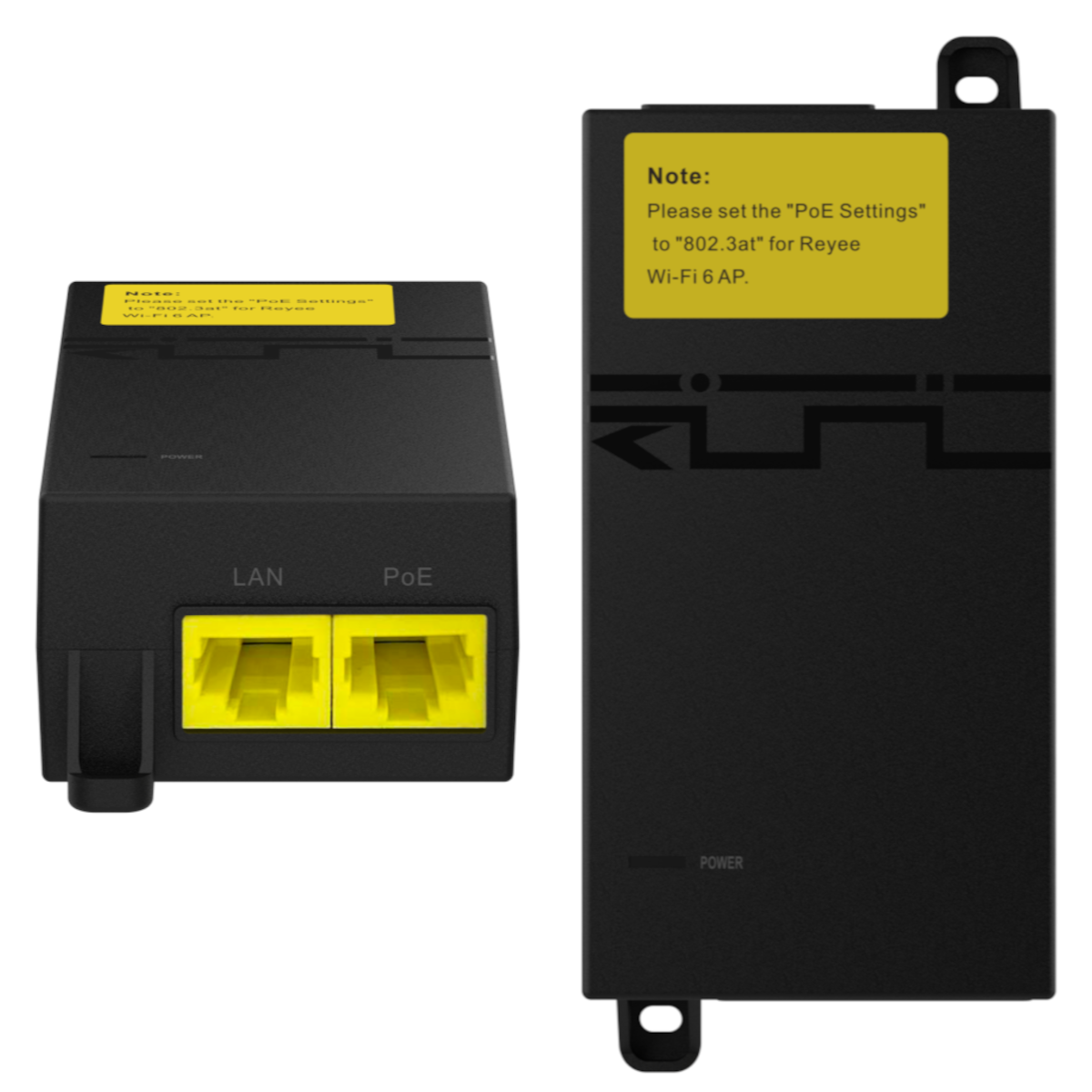

Inyector POE+ Pasivo Reyee RG-POE-AT30 1x Gigabit 52V-31,2W. 802.at

SKU: RED-RG-POE-AT30 Categoría:

Descripción

Specifications
Dimensions / Weight 95.2×52.2×33.2 mm / 145 g
Output Voltage 52V @ 0.60A
Gigabit LAN Port 1x 1000 Base-T Passive PoE+
Remote Reset Capability No
PoE Standard
Passive PoE,52V,31.2W
Rated Voltage 100-240VAC @ 50/60Hz
Input Current 0.7A(Max)
Inrush Current 100A@230Vac
Efficiency 87.06%
Output Ripple ≤200mVp-p
Switching Frequency 65KHz
Line Regulation 5%
Load Regulation ≤5%
2-Pair Powering Pins 4, 5 (+) and Pins 7, 8 (-)
4-Pair Powering No
Clamping Protection 2000A (8/20 μs) Power
Max. Surge Discharge 500A(8/20us)power
Certifications CE;CB

Información adicional

Características Switches

10/100/1000, 8P., No gestionable, PoE
