BRIDGE EXTERIORES REYEE EST350G WIFI 5GHz ALCANCE 5KM

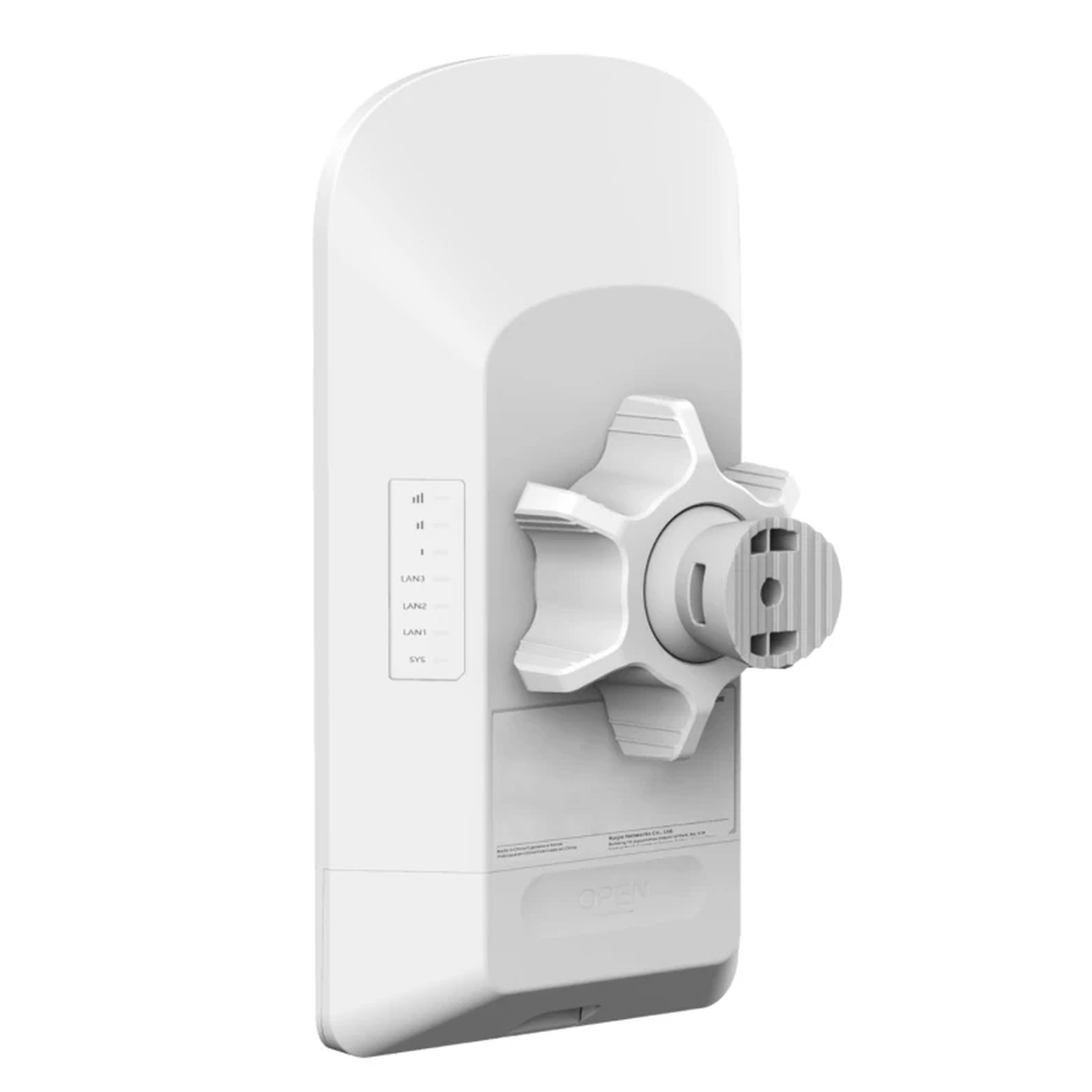

BRIDGE EXTERIORES REYEE EST350G WIFI 5GHz ALCANCE 5KM - Imagen 2

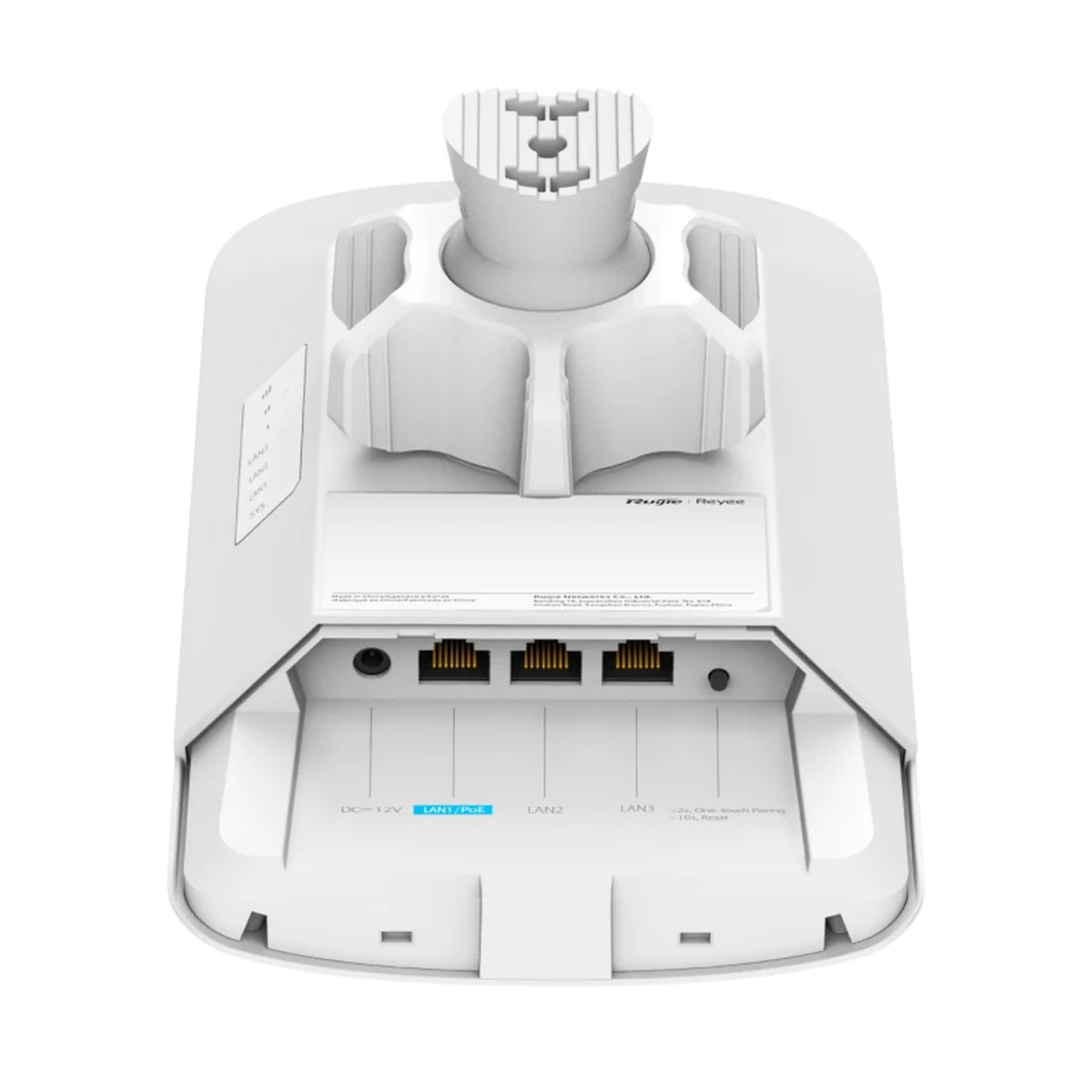

BRIDGE EXTERIORES REYEE EST350G WIFI 5GHz ALCANCE 5KM - Imagen 3

BRIDGE EXTERIORES REYEE EST350G WIFI 5GHz ALCANCE 5KM

Bridge exteriores Reyee RG-EST350G WIFI AC 5GHz 867Mbps alcance 5Km 15dBi PTP/PTMP

SKU: RED-RG-EST350G Categoría:

Descripción

Product Category
Product Category No
Port Specifications
Total number of RJ45 ports 3
Total number of optical ports 0
Number of 1GE combo ports 3
Number of 1GE SFP ports 0
Number of 10/100BASE-T ports 0
System Specifications
CPU Dual-core processor, 880 MHz clock frequency per core
Flash Memory 16 MB
RAM 128 MB DDR3
Power Supply and Consumption
Power supply Power supply options:
DC power adapter /Passive PoE injector / IEEE 802.3af/at (PoE/PoE+)
Note: If both a DC power adapter and PoE (passive PoE injector or IEEE 802.3af/at) are available for power supply, the DC power adapter takes priority.
Power input DC power adapter: Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz / Rated input current: 0.5 A Max. / Output：Rated output voltage: 24 V DC / Maximum output current: 0.6 A
Passive PoE injector: Rated input voltage: 24 V DC / Rated input current: 0.6 A / Output：Rated output voltage: 24 V DC / Maximum output current: 0.6 A
PoE/PoE+: Compliance with 802.3af/a
Number of PoE In ports 1
Number of PoE/PoE+ In ports 1
Local power supply Yes, one DC power connector (12 V, 1.2 A)
Dimensions of the DC connector Outer Diameter: 5.50 mm ± 0.05 mm (0.22 in. ± 0.002 in.) / Inner Diameter: 2.10 mm ± 0.05 mm (0.08 in. ± 0.002 in.) / Depth: 9 mm (0.35 in.)
Maximum power consumption 12 W
Dimensions and Weight
Product dimensions (W x D x H) 133mm x 108 mm x 240 mm (excluding mounting bracket)
Weigh 0.560 kg
Certification and Regulatory Compliance
EMC EN 55032, EN 55035, EN 61000-3-3, EN 61000-3-2, EN 301489-1, EN 301489-3, EN 301489-17
Safety compliance & Certification EN62368-1 / CE, CB
Hardware Features
Radio Design Dual-radio / 3 spatial streams / Radio 1: 2.4 GHz, 1 spatial stream: 1 x 1, SISO / Radio 2: 5 GHz, 2 spatial streams: 2 x 2, MIMO
2.4 GHz Band Sí
5 GHz Band Sí
Protocol and Standard Wi-Fi 5 (IEEE 802.11ac) standard, compatible with IEEE 802.11a/b/g/n standards
Wi-Fi 4/5/6/7 Wi-Fi 5
Spatial Streams 2.4 GHz: 1 x 1 Built-in omnidirectional antenna
5 GHz: 2 x 2 Built-in directional antenna, horizontal: 31°, vertical: 14°
Channel Width 2,4 GHZ: Auto/20/40 MHz / 5GHZ: Auto/20/40/80 MHz
Receiver Sensitivity 802.11b: -91 dBm (1 Mbps), -88 dBm (5 Mbps), -85 dBm (11 Mbps)
802.11a/g: -89 dBm (6 Mbps), -80 dBm (24 Mbps), -76 dBm (36 Mbps), -71 dBm (54 Mbps)
802.11n: -83 dBm@MCS0, -65 dBm@MCS7, -83 dBm@MCS8, -65 dBm@MCS15 802.11ac HT20: -83 dBm (MCS0), -57 dBm (MCS9)
802.11ac HT40: -79 dBm (MCS0), -54 dBm (MCS9)
802.11ac HT80: -76 dBm (MCS0), -51 dBm (MCS9)
Modulation Levels (Adaptive) 802.11b: BPSK, QPSK, CCK
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
Wi-Fi Protocols Wi-Fi 4 (IEEE 802.11b/g/n)
Wi-Fi 5 (IEEE 802.11ac)
Wireless Data Rate Maximum wireless data rate: 1166 Mbps
Radio 1: 2.4 GHz, 300 Mbps
Radio 2: 5 GHz, 866 Mbps
Frequency Bands IEEE 802.11b/g/n: 2.400 GHz to 2.483 GHz
IEEE 802.11a/n/ac: 5.150 GHz to 5.350 GHz
IEEE 802.11a/n/ac: 5.470 GHz to 5.725 GHz
IEEE 802.11a/n/ac: 5.725 GHz to 5.850 GHz
Note: Country-specific restrictions apply.
Max. Transmit Power 2,4 GHz: Combined power: 20 dBm (single stream power: 20 dBm) Note: The transmit power varies according to regulations in different countries and regions.
5 GHz: Combined power: 29 dBm (single stream power: 26 dBm) Note: The transmit power varies according to regulations in different countries and regions.
Surge Protection Service port: ±4 kV for common mode
Power connector: ±4 kV for common mode and ±2 kV differential mode
2.4 GHz Antenna Gain 2 dBi
5 GHz Antenna Gain 16 dBi
IP Rating IP55
Working Distance 5 Km
Bridging Performance 230 Mbps/1 km (0.62 miles) (HT40)
200 Mbps/3 km (1.86 miles) (HT40)
150 Mbps/5 km (3.11 miles) (HT40)
RSSI (dBm) –56 dBm/1 km (0.62 miles)
–64 dBm/3 km (1.86 miles)
–68 dBm/5 km (3.11 miles)
Management Radio 2,4 GHz: 2.400 GHz to 2.483 GHz / 5 GHz: 5.150～5.350GHz，5.725～5.850GHz
ESD Protection Standard test: contact discharge=8 kV, air discharge=15 kV, Class B
Software Features
Operating Mode Base Station/CPE
Channel Spacing 20 MHz
Enhanced one-to-many transmission (TDMA) Sí
WLAN Security WPA2-PSK
Management SSID @Ruijie-bxxxx
SSID Hiding Si
Antenna horizontal orientation 31º
Antenna vertical orientation 14º
One-Touch Pairing No
WMM Si
Storm Control Si
VLAN Packet Transmit Si
DHCP Server Si
DHCP Client Si
Fault Diagnostics Sí Note: support for network tools (ping, traceroute, and nslookup), fault alarms, and fault collection
Cloud Management Si
Power Configuration Si
Country/Region Code Si
Restarting devices through Ruijie Reyee App Si
SON Self-organizing Networking with Bridges
SNMPv1, v2c, and v3 Si
Link Aggregation No
Ping Si
Traceroute Si
AI Heatmap Si
Package Contents
Wireless Bridge/Antenna 2
PoE Injector 2
DC Power Adapter 2 (24 V/0.6 A DC power adapter)
Mounting Bracket 2 x Ball joint mount / 2 x Lock ring / 2 x Mounting bracket
